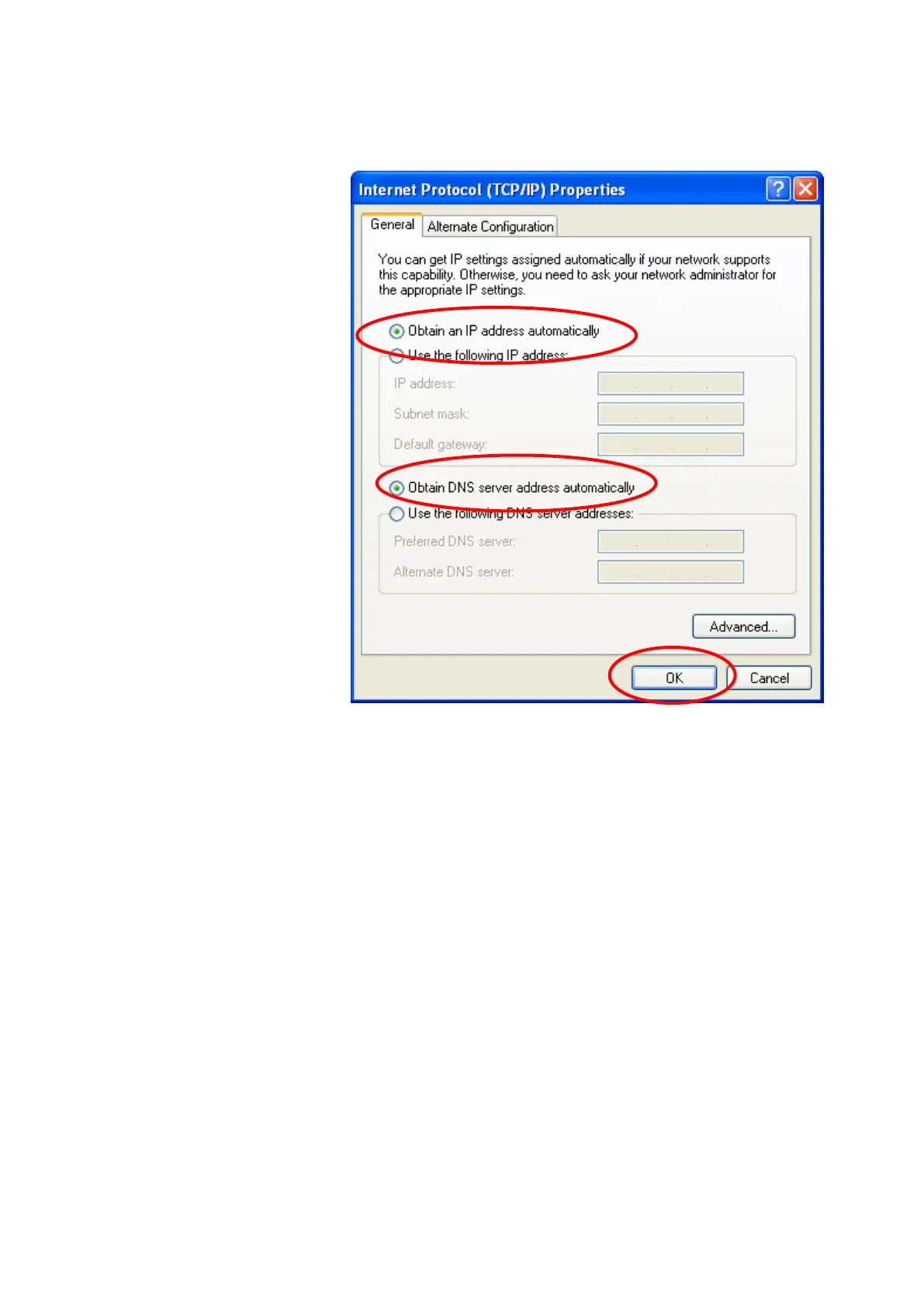

4. Check "Obtain an IP address automatically" and "Obtain

DNS server address automatically" then click on "OK" to

continue.

5. Click "Show icon in notification area when connected"

(see screen image in 3. above) then Click on "OK" to

complete the setup procedures.
