1. From the head menu, click on WAN2.

2. From the left-hand menu, click on WPS. The following page

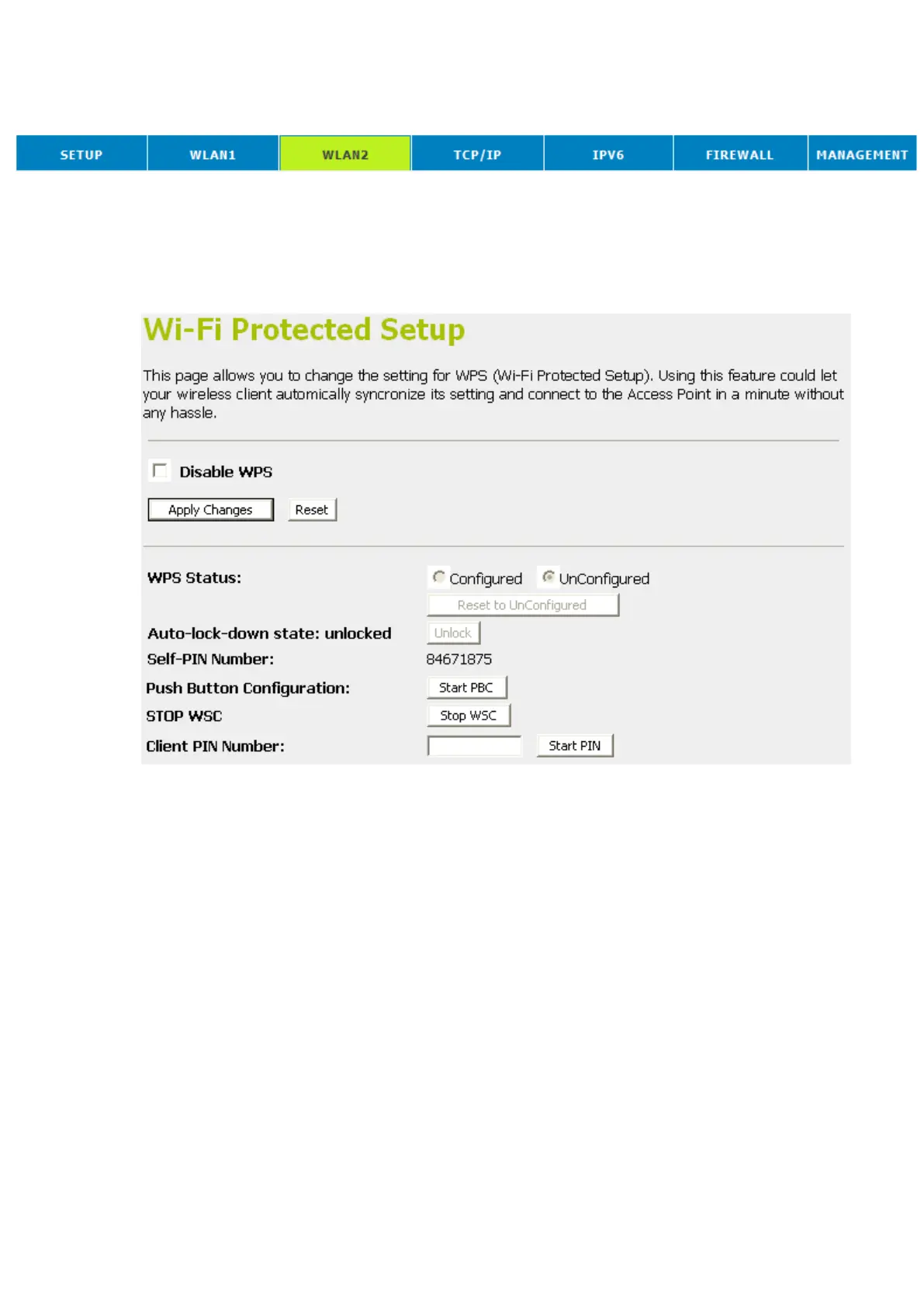

is displayed:

3. Make sure AP is in un-configured state.

4. Enter the Client PIN Number.

5. Click Start PIN.
