Diagnostic aids 3-39
7002-xxx
Access doors and trays

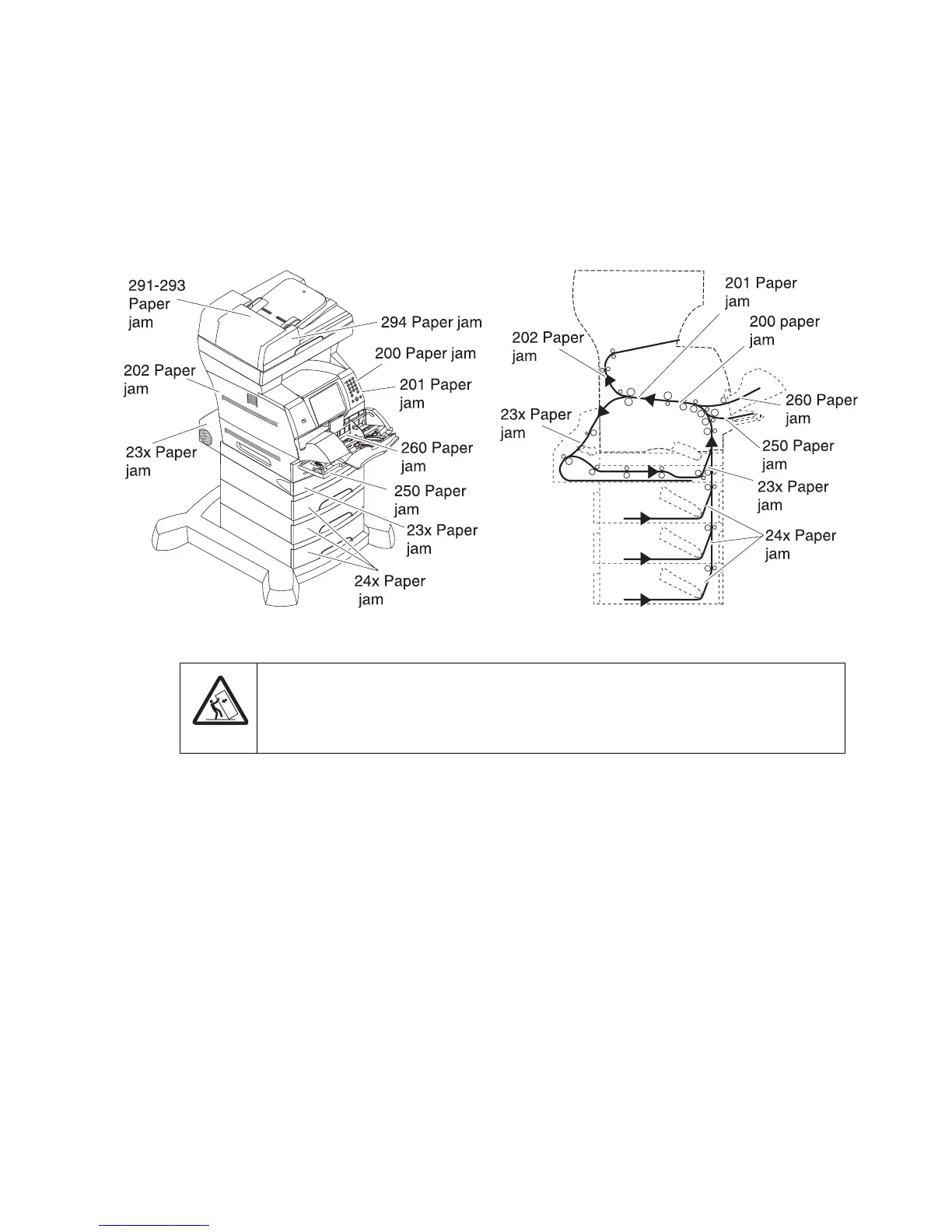

The following illustration shows the path that print media travels through the MFP. The path varies depending on
the input source (trays, multipurpose feeder, envelope feeder) you are using.
The numbers in following the illustration indicate the numbers that can appear on the operator panel and
designate the general area of a paper jam.
Doors and trays
Path and locations
Models X644e/X646e shown
CAUTION
Floor-mounted configurations require additional furniture for stability. You must use either a
printer stand or printer base if you are using a 2000-sheet drawer. Certain other
configurations also must have a printer stand or printer base.
