4-66 Service Manual
7002-xxx
Touchscreen bezel removal

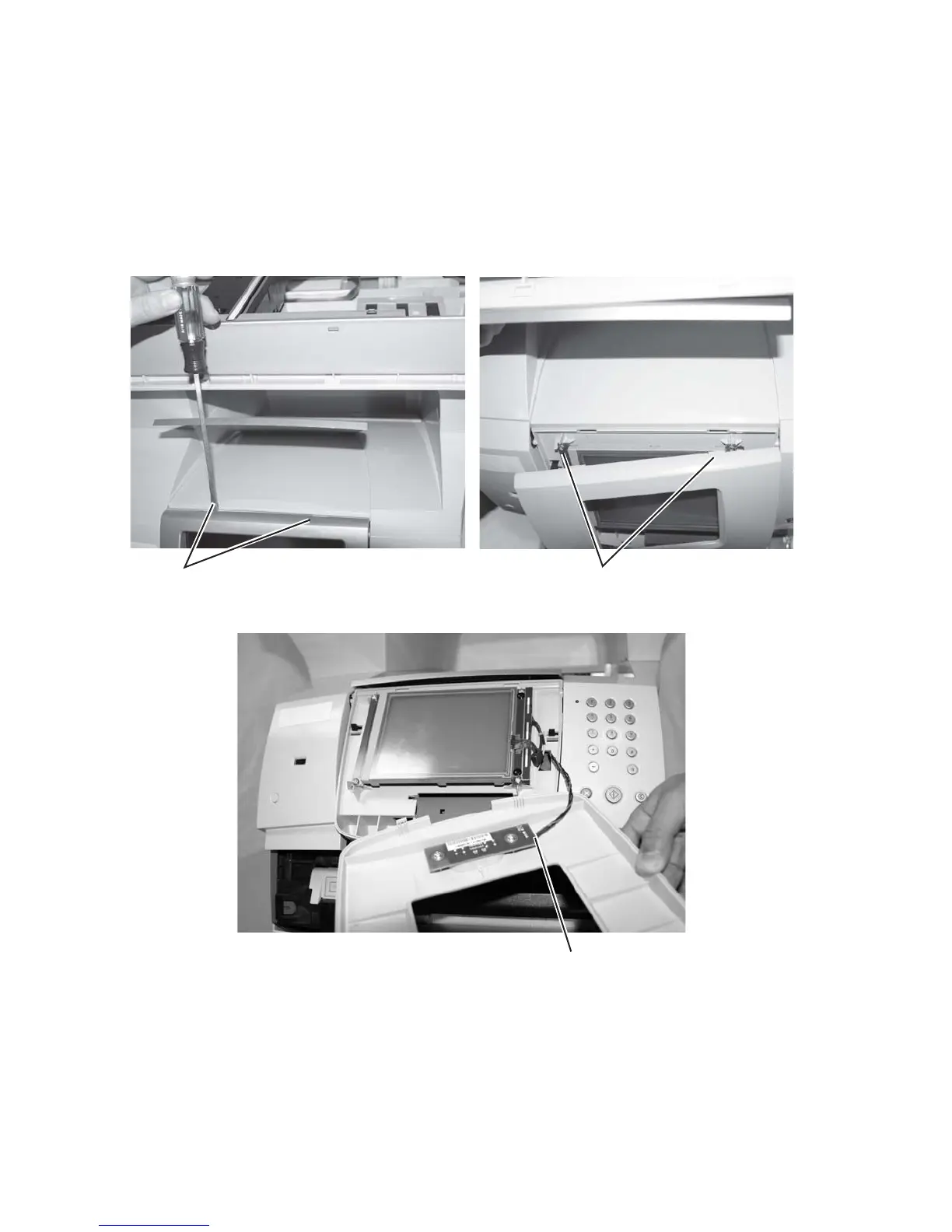

1. Open the printer upper front cover.
2. Use a small screwdriver or other small tool to carefully release the two tabs (A) under the touchscreen
bezel.
Warning: Be careful not to scratch or mar the touchscreen bezel.
3. For model X642e, disconnect the UICC#3 cable (B).
4. Remove the touchscreen bezel.
AA
Models X644e/X646e Model X642e
B
