4-92 Service Manual
7002-xxx
Fuser to LVPS AC cable removal
1. Remove the fuser wick assembly cover. See “Fuser wiper cover assembly removal” on page 4-54.
2. Remove the redrive assembly. See “Redrive assembly removal” on page 4-128.
3. Remove the right side cover. See “Printer right cover removal” on page 4-58.

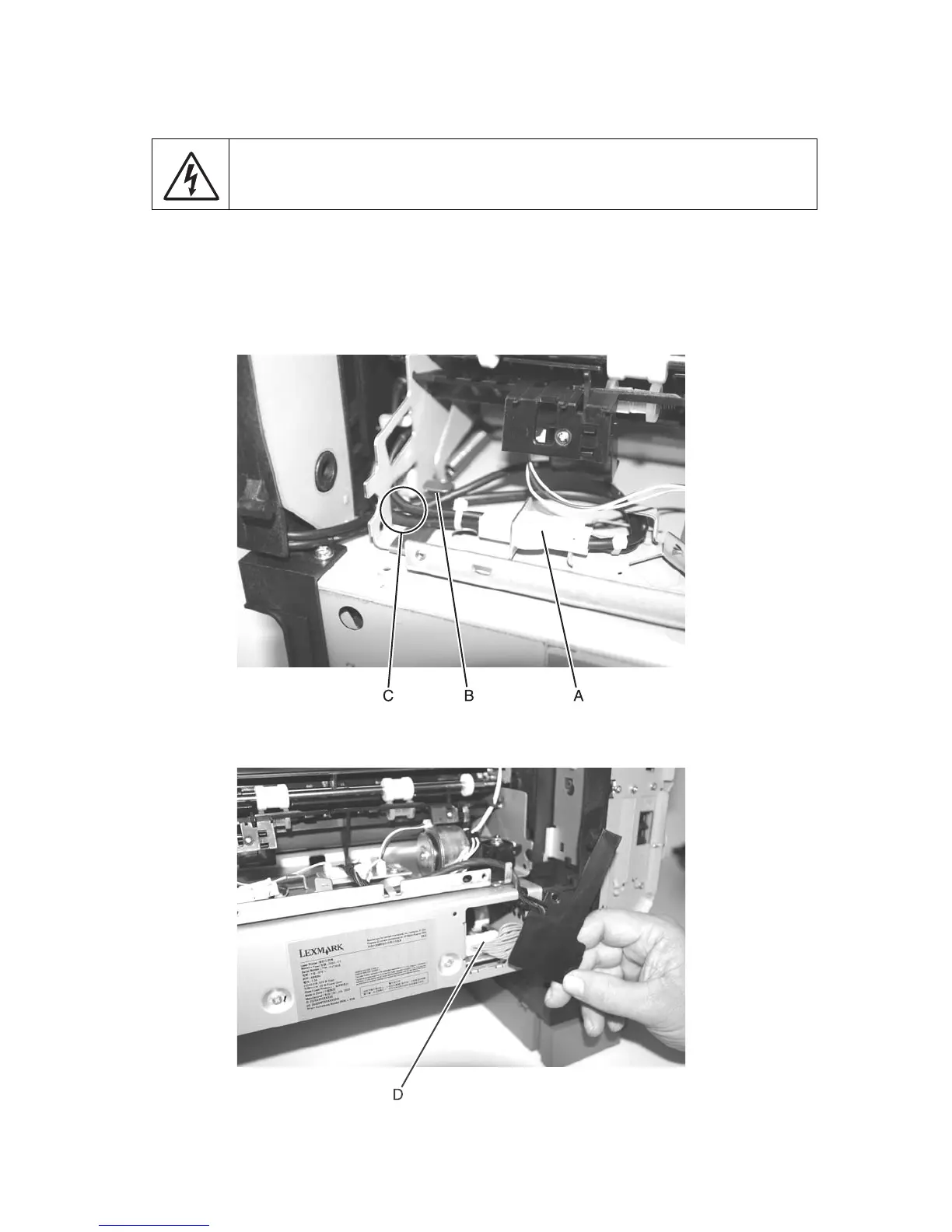

4. Disconnect the fuser to LVPS AC cable (A) from the fuser lamp connector on the fuser, and remove the
cable through the cable retainer (B) and the lower rectangular opening (C) in the fuser frame.
5. Remove the pass thru plate. See “Pass thru plate” on page 4-74.
6. Disconnect the LVPS to system board DC cable (D) from the LVPS.
CAUTION
Unplug the printer before you begin.
To Next Page
