5-12 Service Manual
7002-xxx
Operator panel card (UICC #1)—model X642e
Note: Part of operator panel right cover assembly.

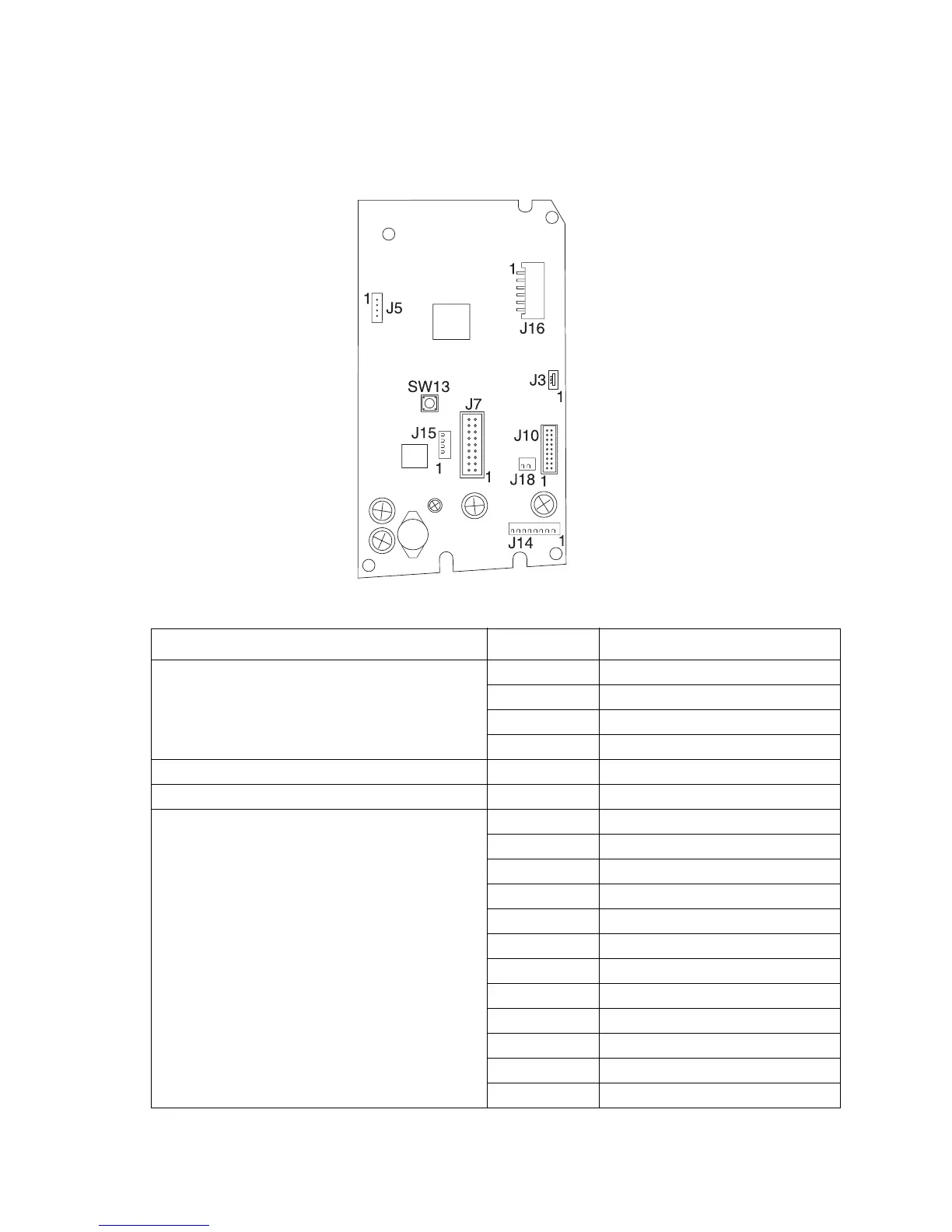

Operator panel card connector pins—model X642e
Connector CN pin no. Signal
J3 to touchscreen display 1 X-DRIVE +5 V dc IN
2 X+/Y +DRIVE
3 Y+/X +DRIVE
4 Y-/X +5 V dc IN
J5 Not used
J7 Not used
J10 to J15 on scanner control card 1 +24 V dc
2+24Vdc
3Ground
4Ground
5TXD-
6TXD+
7 TXD232 N
8 RXD232 N
9Ground
10 Ground
11 CLKTX-
12 CLKTX+
Model X642e
