Repair information 4-119
7002-xxx
MPF solenoid assembly removal
1. Open the left door.
2. Remove the MPF lower front cover. See “Multipurpose feeder/lower front cover assembly removal” on
page 4-71.
3. Remove the MPF lower paper deflector. See “MPF lower paper deflector” on page 4-117.
4. Remove the upper paper deflector. See “Upper paper deflector assembly removal” on page 4-138.

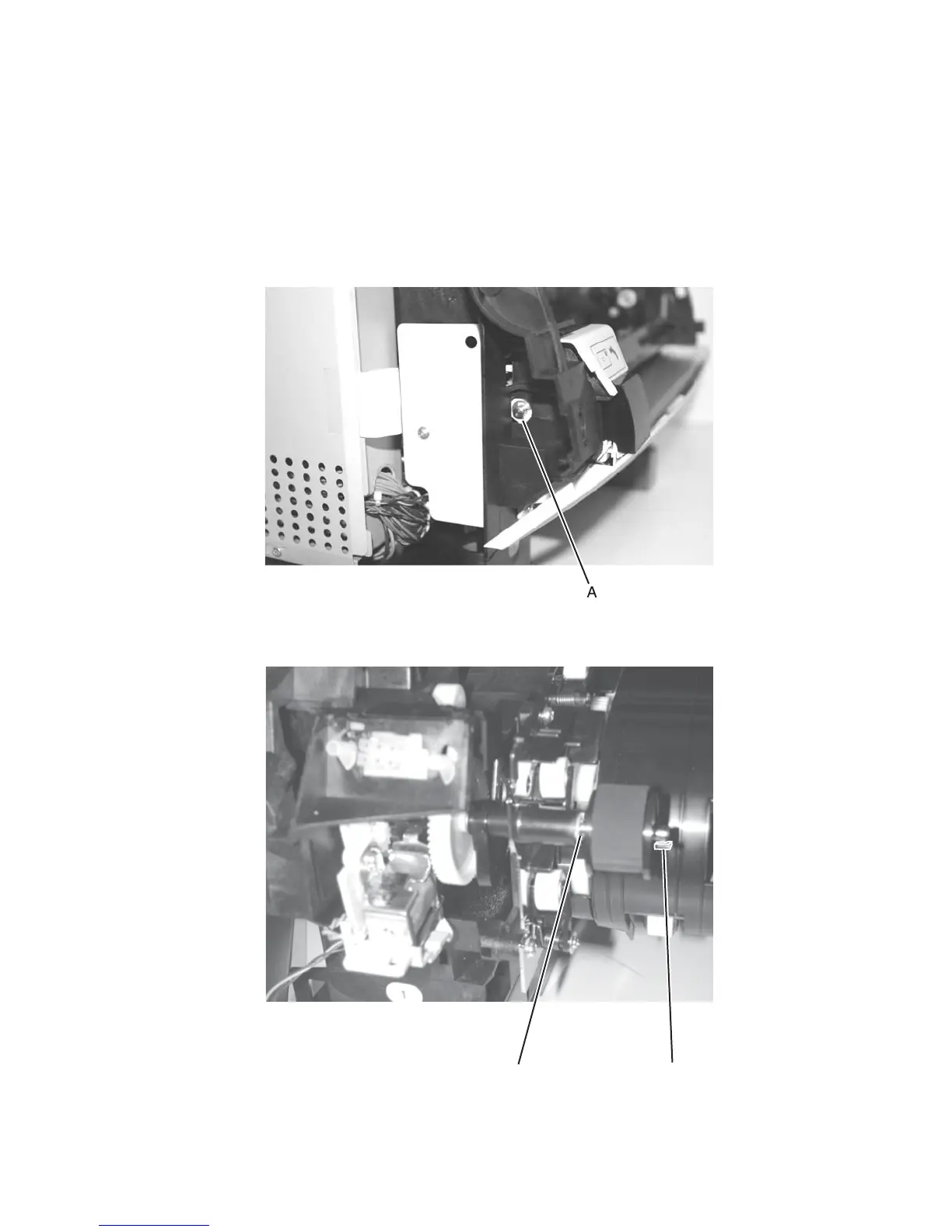

5. Remove the C-clip (A) on the left side.
6. Press the clips on the end of the shaft to remove the MPF tires (B).
7. Remove the C-clip (C) on the shaft.
BC
