Lexmark X642e - Fuser Board; High Voltage Power Supply

Locations and connections 5-9
7002-xxx

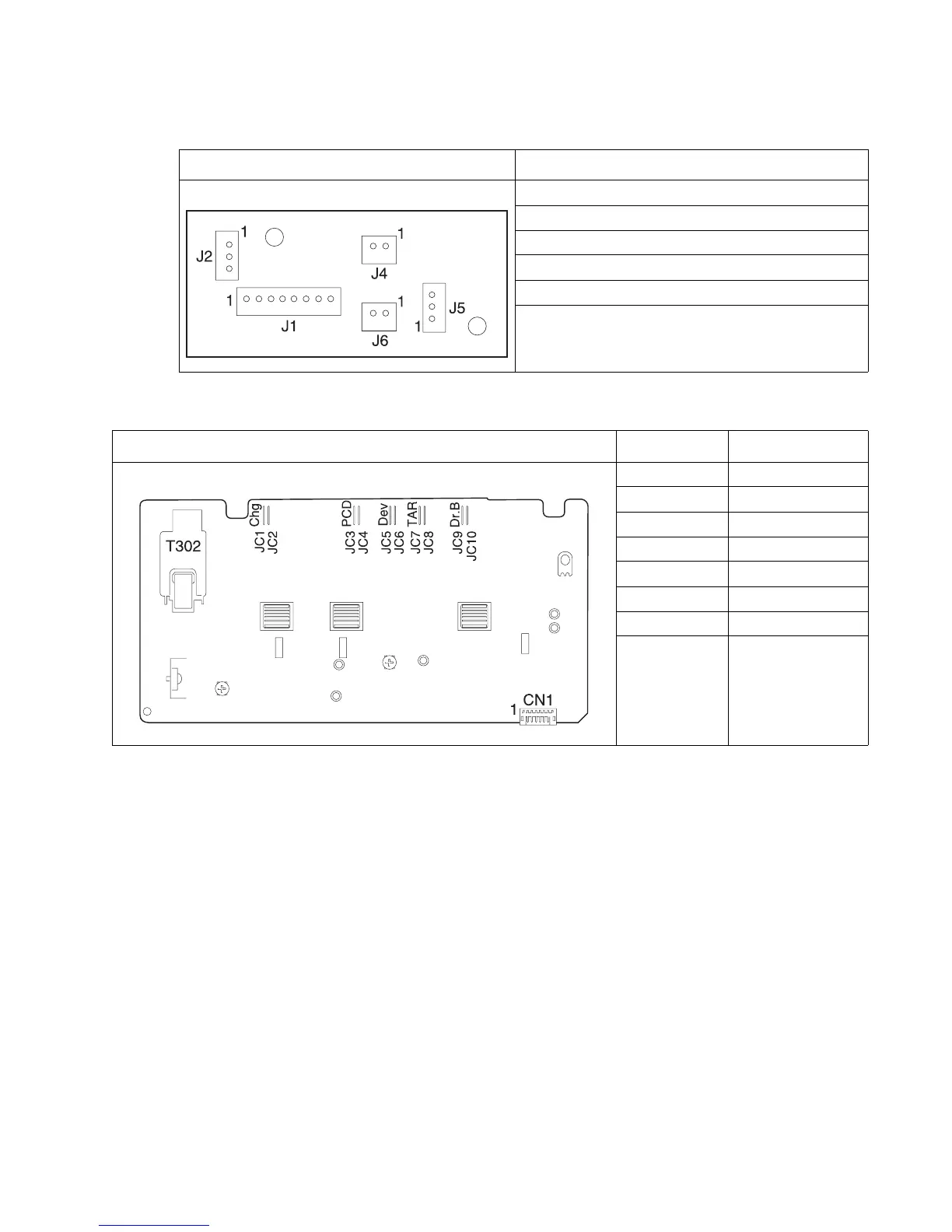

Fuser board
High voltage power supply
Fuser Board (not a FRU) Connectors
J1—System board
J2—Narrow media sensor
J3—N/A
J4—Solenoid
J5—Exit sensor
J6—Thermistor
Connector CN no. Signal
CN1 System board 1 Developer PWM
2+24Vdc Return
3 Charge PWM
4+24Vdc IN
5 TX PWM
6 TX Enable
7 TX CUR PWM
8 SVRO OUT
