10. Turn over the sensor cover, and remove the screw (F) for the sensor you need to replace.
Note: There are three sensors in models X644e/X646e. There is only one in model X642e.
11. Disconnect the sensor cable (G) at the sensor and remove the sensor.
Note: Only remove one sensor at a time to make it easier to reinstall the right cable.
G
G
F
F

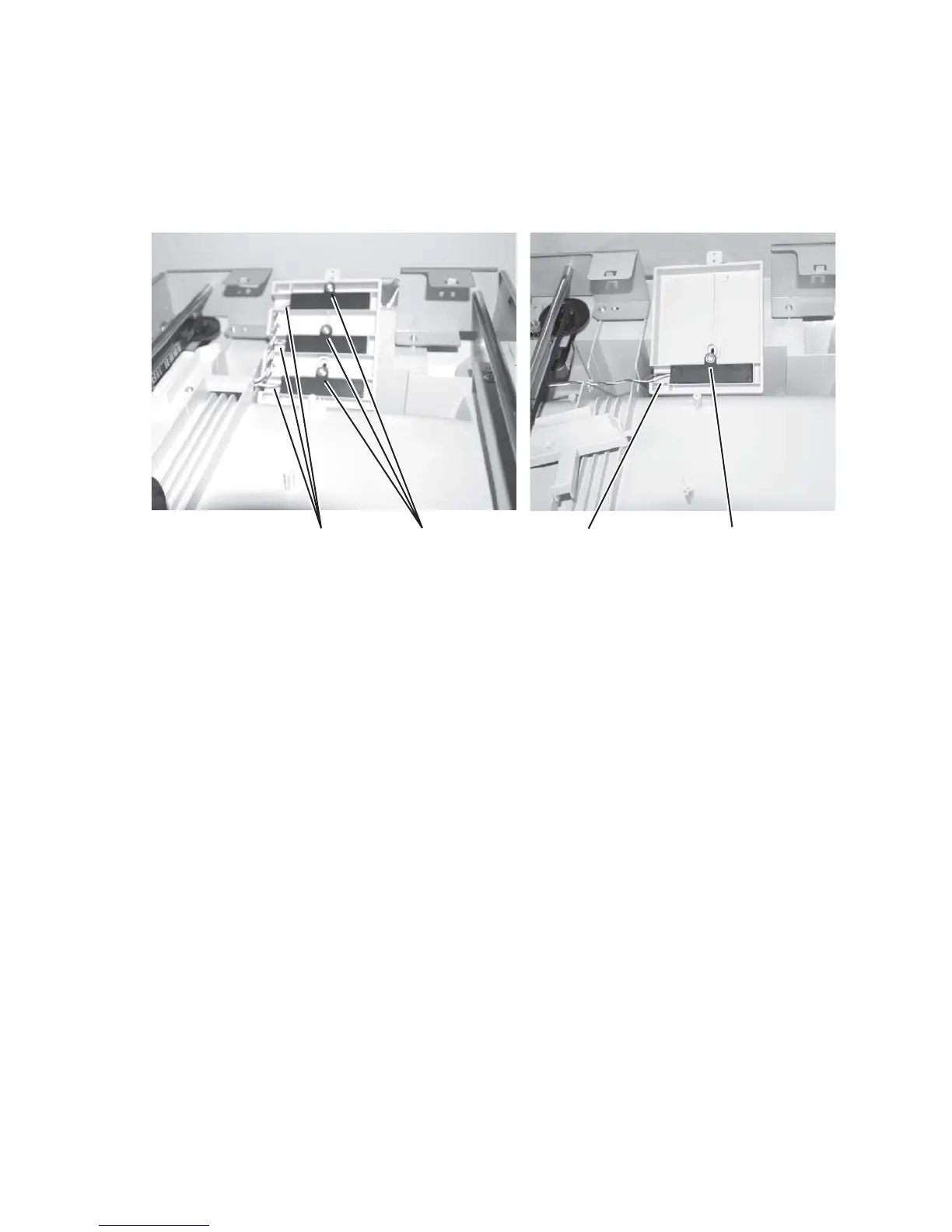

Models X644e/X646e Model X642e
