Repair information 4-137
7002-xxx

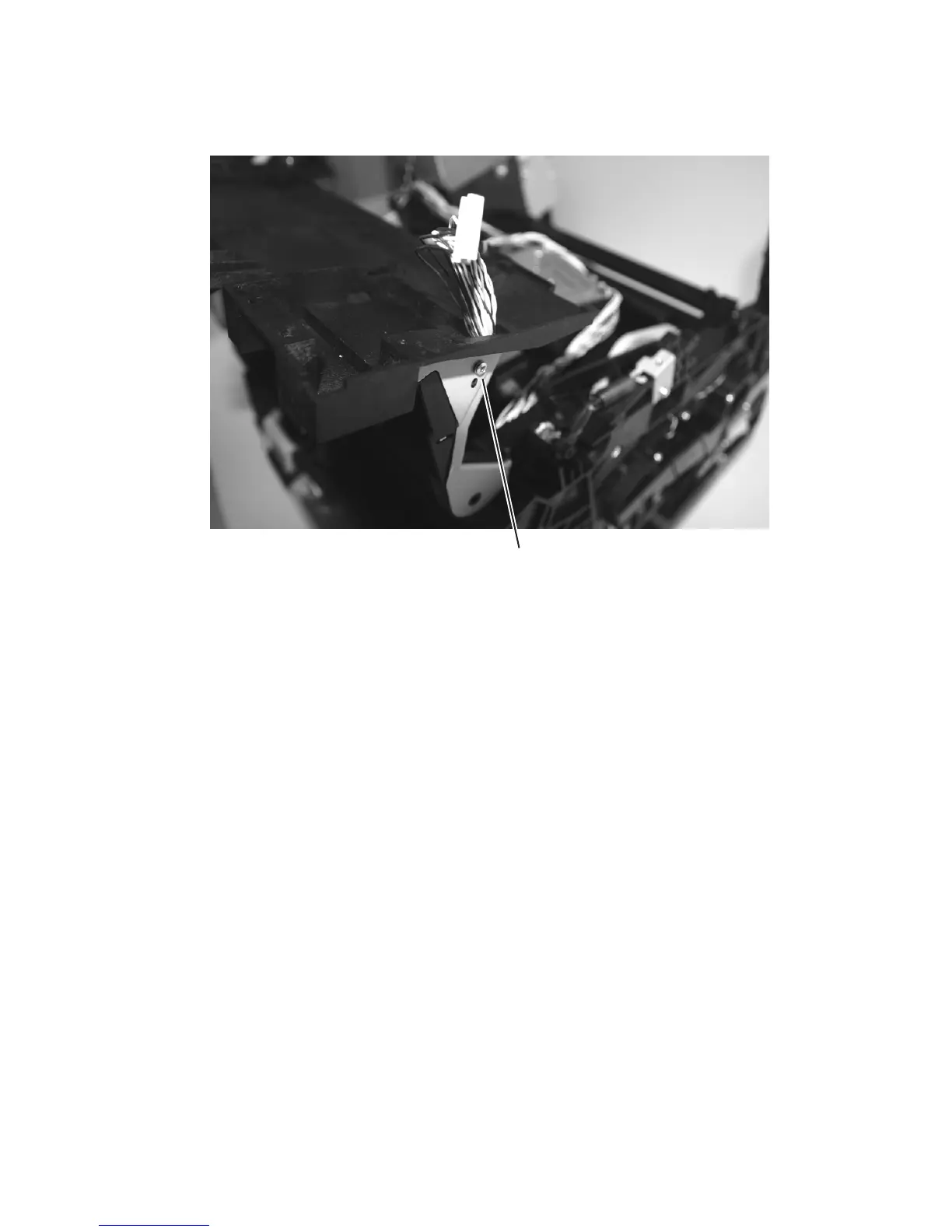

14. Remove the screw (D) attaching the hinge right side cable retainer and removal the UICC (18-pin) to
scanner control card cable from the hinge arm.
15. Raise the upper front cover hinge assembly to a position that lets you lift the left pivot arm from the
mounting bracket.
16. Lift the left pivot arm from the bracket, and move the upper cover hinge assembly toward the left to clear
the right upper cover pivot arm from the mounting bracket.
17. Remove the upper front cover hinge assembly.
D
To Next Page
