4 Operation
Loading / Transporting

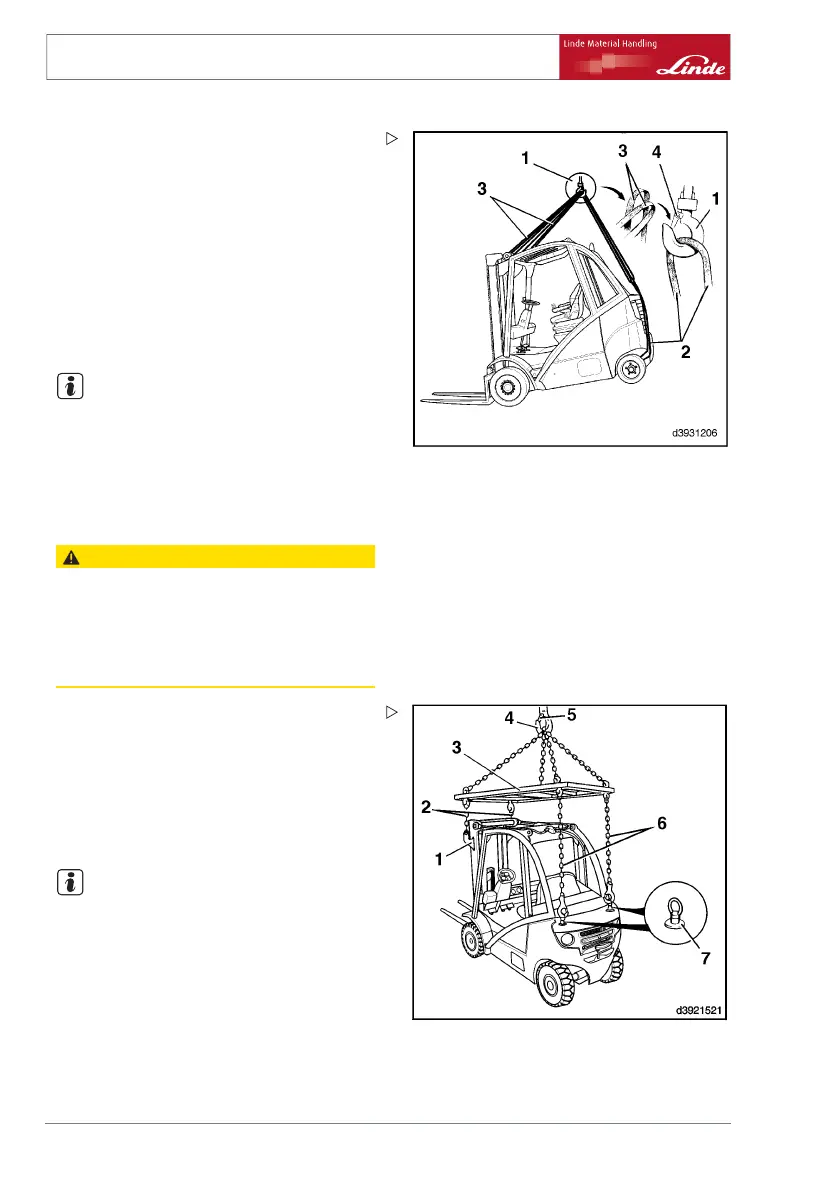

¾ Place the round sling (2)(min. lifting ca-
pacity: 3000 kg) around the bottom of the
counterweight.
¾ Use edge protectors as a safeguard from
sharp edges on the bridge piece.
¾ Insert round sling (3) (min. lift
ing capacity:
3000 kg) around bridge piece on
outer mast
of lift mast.
¾ Insert all ends into crane hook (1) .
¾ Make sure that the safety lock (4) is closed.
NOTE
During lifting, the lifting gea
r should not touch
the overhead guard, the cover sh
eet on the
counterweight and any addition
al equipment
attached.
Crane lifting with crane eyes
CAUTION
If the sling is at an angle to the crane eye, the crane
eye may break off.
Crane lifting with crane eyes should only be carried
out with the appropriate lifting gear (3), whereby the
chains (2, 6) lead up vertically from the crane eyes
(1, 7).
¾ Attach chains (6) (min. lifting capacity:
3000 kg) to the crane eyes (7) on the coun-
terweight.
¾ Attach chains (2) (min. lifting capacity:
3000 kg) to the crane eyes (1) on the lift
mast.
¾ Make sure that the safety lock (5) is closed.
NOTE
During lifting, the lifting gear should not touch
the overhead guard, the cover sheet on the
counterweight and any additional equipment
attached.
