Maintenance 5
Hydraulics

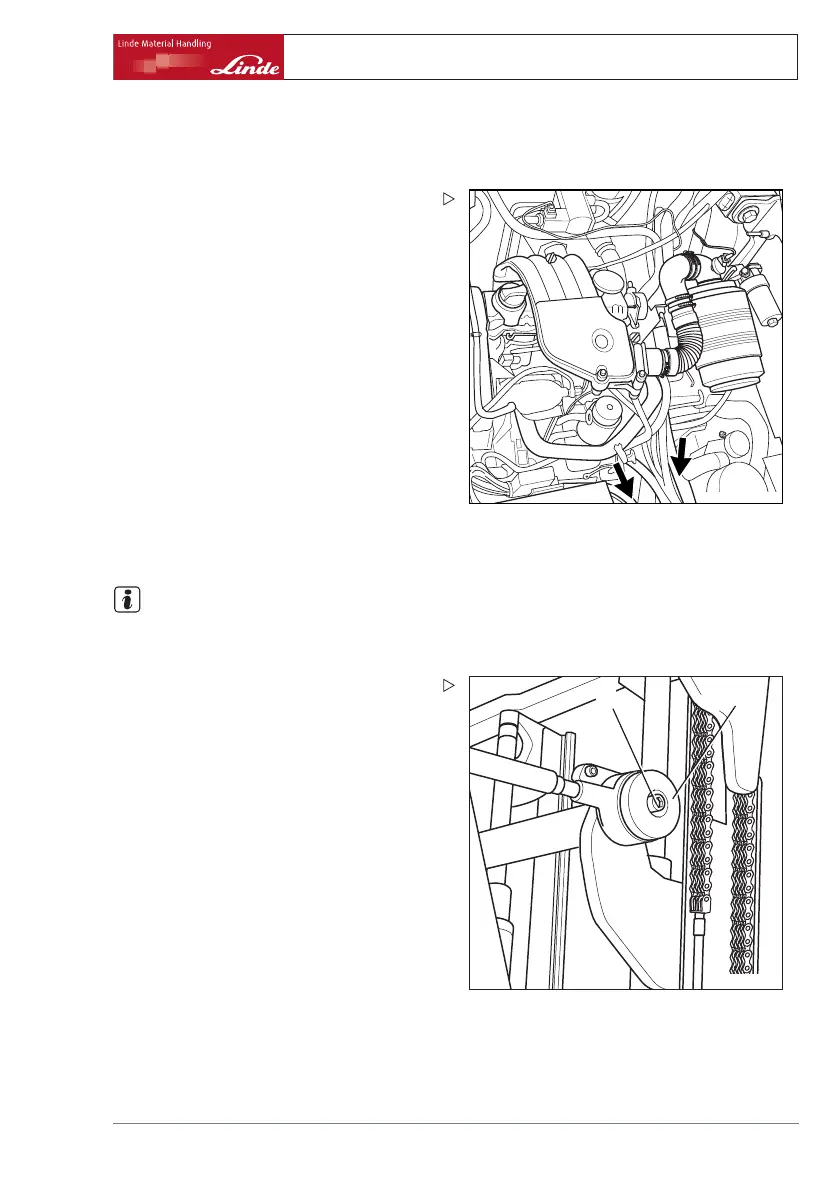

Check the hydraulic system for leaks
¾ Raise and secure the floor plate.
d3921455
¾ Check all unions between oil reservoir, drive
motors, pumps and control valves for leaks.
¾ Tighten connections if necessar
y.
¾ Check the lift, tilt and steering cylinders for
leaks.
¾ Replace any porous hoses.
¾ Inspect the lines for chaffing an
d replace, if
necessary.
¾ Close the floor plate.
Check tilt cylinder
bearings for wear
NOTE
The tilt cylinders
are mounted in rubber bea-
rings at both ends.
d3921471
1
2
¾ Remove the screw (1) at the disc (2).
¾ Make a visual inspection of the rubber bear-
ings for cracks.
The rubber should no
t have any cracks.
¾ Check the rubber bearing at the front and
rear of each tilt cylinder.
When a rubber bearing is worn or damaged,
renew it. Please contact your authorised
dealer.
