5 Maintenance
Troubleshooting

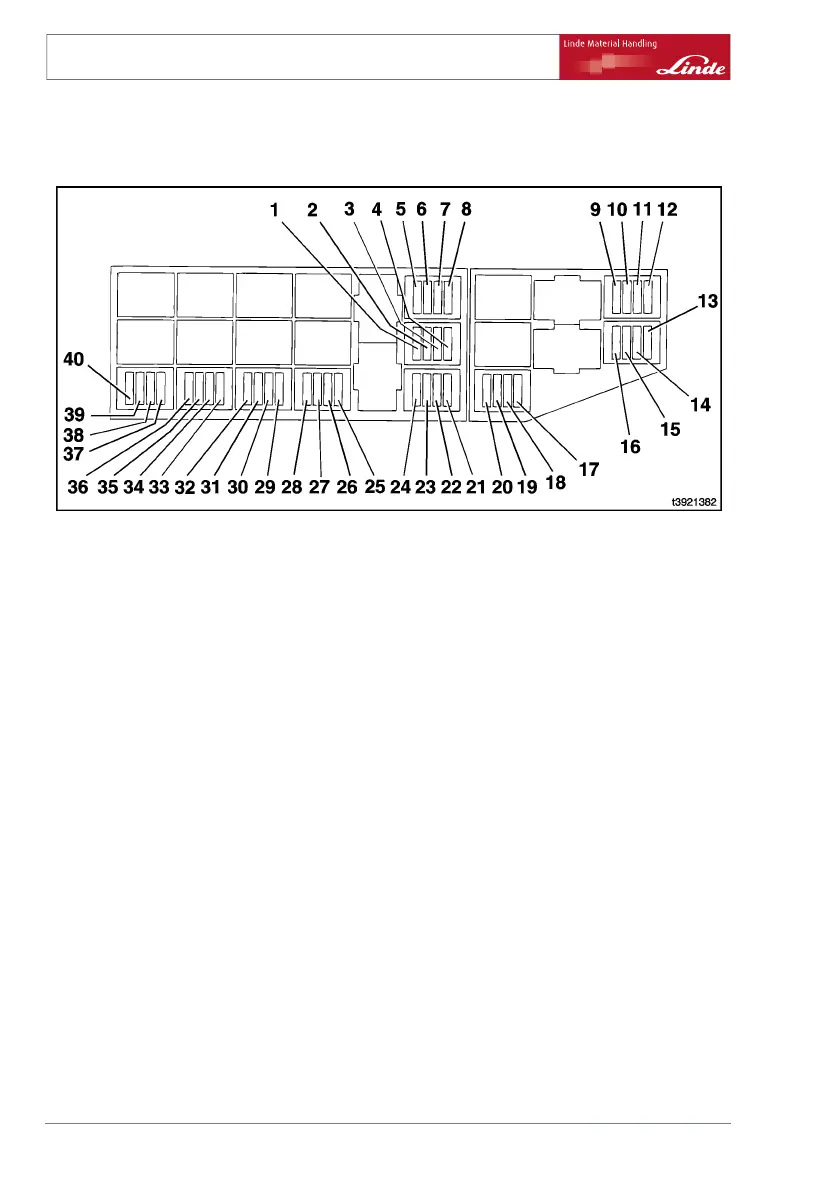

Fuses for basic and special equipment
Checking and changing fuses
1 12 V socket (9F10)*, 15 A
2 Heater/air conditioning (9F9)*, 20 A
3 Seat heater (9F6)*, 15 A
4 Warning light and rotating beacon (4F3)*,
7.5 A
5 Working headlight positions 3, 4 (5F2)*, 15 A
6 Working headlight positions 5, 6 (5F3)*, 15 A
(with attachment of one 7.5 A headlight)
7 Working headlight positions 7, 8 (5F4)*, 15 A
(with attachment of one 7.5 A headlight)
8 Rear window heater (9F5)*, 20 A
9 Indicator unit (terminal 30) (F5), 2 A
10 Indicator unit (terminal 15) (F6), 2 A
11 Alarm horn (F7), 15 A
12 Traction-lift control (terminal 15) (F8), 2 A
13 Engine control unit (F12), 5 A
14 Engine control unit (F11), 20 A
15 Not assigned
16 Traction-lift control (terminal 30) (F9), 15 A
17 3. Auxiliary hydraulics (F16)* 7.5 A
18 Terminal 15 (F15), 10 A
19 Terminal 58 (F14), 2 A
20 Terminal 30 (F13), max. 15 A
21 Toothed belt seal blower (0F1)*, 10 A
Time-delayed lighting off (F17)*, 2 A
22 Particulate filter (7F3)*, 30 A
23 Particulate filter (7F2)*, 20 A
24 Particulate filter (7F1)*, 5 A
25 Vehicle Data Management (6F1)*, 5 A
26 Reverse motion (4F1)*, 10 A
27 Radio (terminal 58) (9F8)*, 10 A
28 Radio (terminal 30) (9F7)*, 5 A
29 Washer pumps (9F4)*, 10 A
30 Windscreen wiper rear and roof (9F3)*, 10 A
31 Front windscreen wiper (9F2)*, 10 A
32 Windscreen wiper (9F1)*, 2 A
33 Interior light (5F12)*, 5 A
34 Brake light (5F7)*, 5 A
35 Warning lights (5F6/5F13)*, 10 A
36 Lighting / working headlight positions 1, 2
(5F5/5F1)*, 15 A
37 Right sidelights (5F11)*, 5 A
38 Left sidelights (5F10)*, 5 A
39 Right headlight (5F9)*, 7.5 A
40 Left headlight (5F8)*, 7.5 A
* Special equipment
Main fuses in engine compartment
Checking and changing fuses
¾ Open the bonnet.
186 Operating Instructions – 393 807 1001 EN – 08/2008
