Operation 4
Standard equipment
d3921416
1
2
3
4

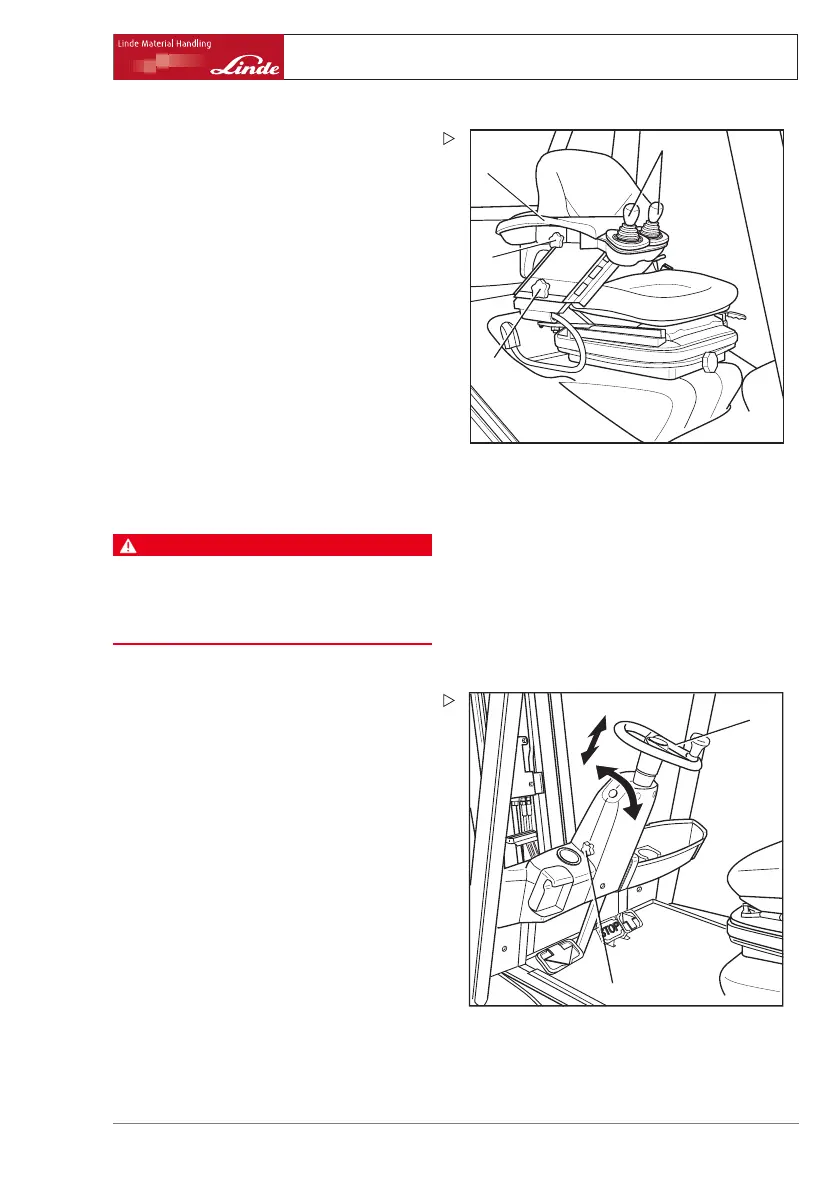

¾ Sit down on the operator’s seat and loosen
the handwheel (1).
¾ Push the armrest (3) down against the force
of the spring until a comfortable position for
the arm is reached.
¾ Tighten the handwheel (1).
¾ Loosen the handwheel (2) and slide the
armrest (3) back and forth until the control
lever (4) is easily accessible.
¾ Tighten the handwheel (2).
Adjusting the steering column
DANGER
Safe driving is not guaranteed with the clamping
screw open.
Only adjust the steering column when the vehicle is
stationary.
Angle adjustment
t3921369
1
2
¾ Undo the clamping screw (2) anticlockwise.
¾ Move the steering wheel (1) into the re-
quired position.
¾ Tighten the clamping screw (2) clockwise.
Height adjustment
¾ Undo the clamping screw (2) anticlockwise.
¾ Move the steering wheel (1) into the re-
quired position by pulling it up or pushing it
down.
¾ Tighten the clamping screw (2) clockwise.
Operating Instructions – 393 807 1001 EN – 08/2008 29
