Maintenance 5
Hydraulics
Hydraulics
Change hydraulic oil
Drain hydraulic oil
ENVIRONMENT NOTE
Observe information regarding working with
consumables.
¾ Drive truck over pit.
¾ Fully lower fork carriage and lift mast.
¾ Place a collection vessel under the left side
of the truck floor.

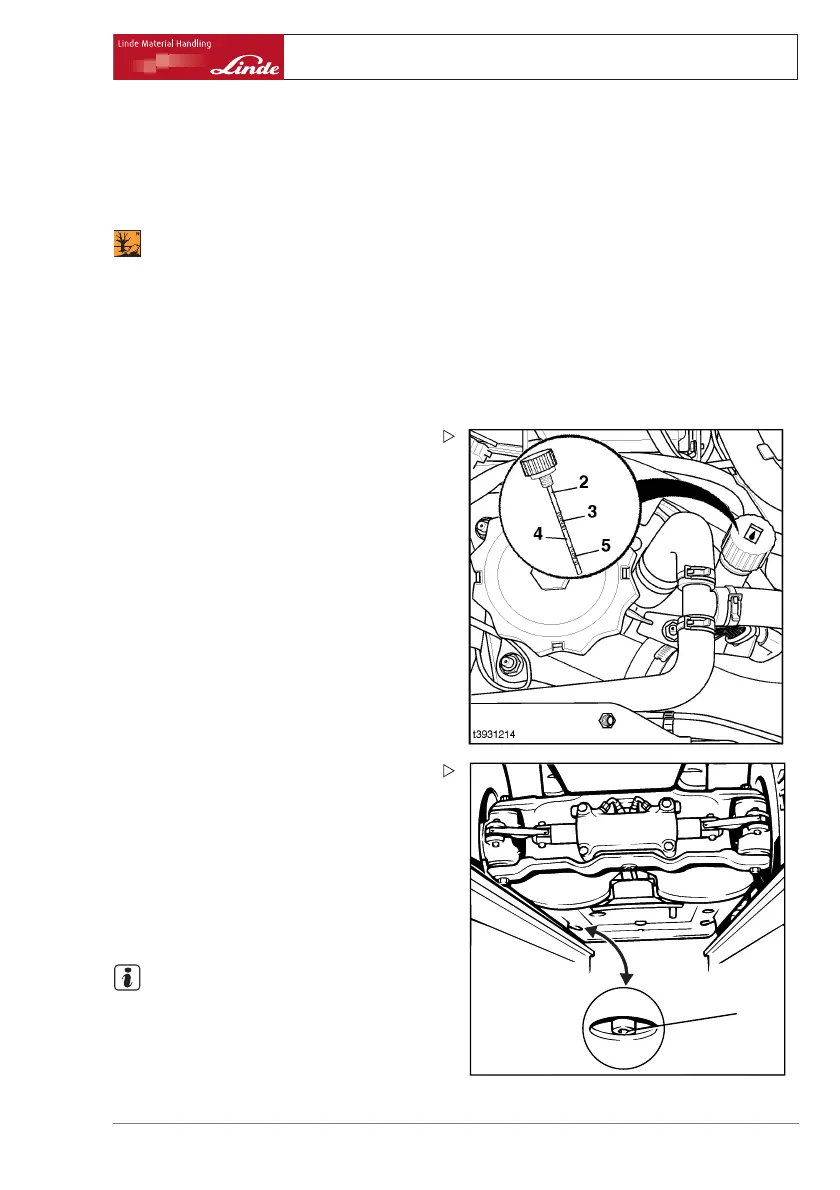

¾ Open the bonnet. Unscrew breather filter
with oil dipstick (2).
1
d3921335
¾ Unscrew hydraulic oil drain plug (1) on hy-
draulic oil tank.
¾ Allow all oil to drain off. Clean area around
oil drainage location thoroughly.
¾ Refit drain plug.
Tightening torque: 25 Nm
Refill/top up hydraulic oil
NOTE
The oil dipstick has markings that apply to the
various lift heights.
Operating Instructions – 393 807 1001 EN – 08/2008 167
