Operation 4
Loading / Transporting
1
2
3
d3921520

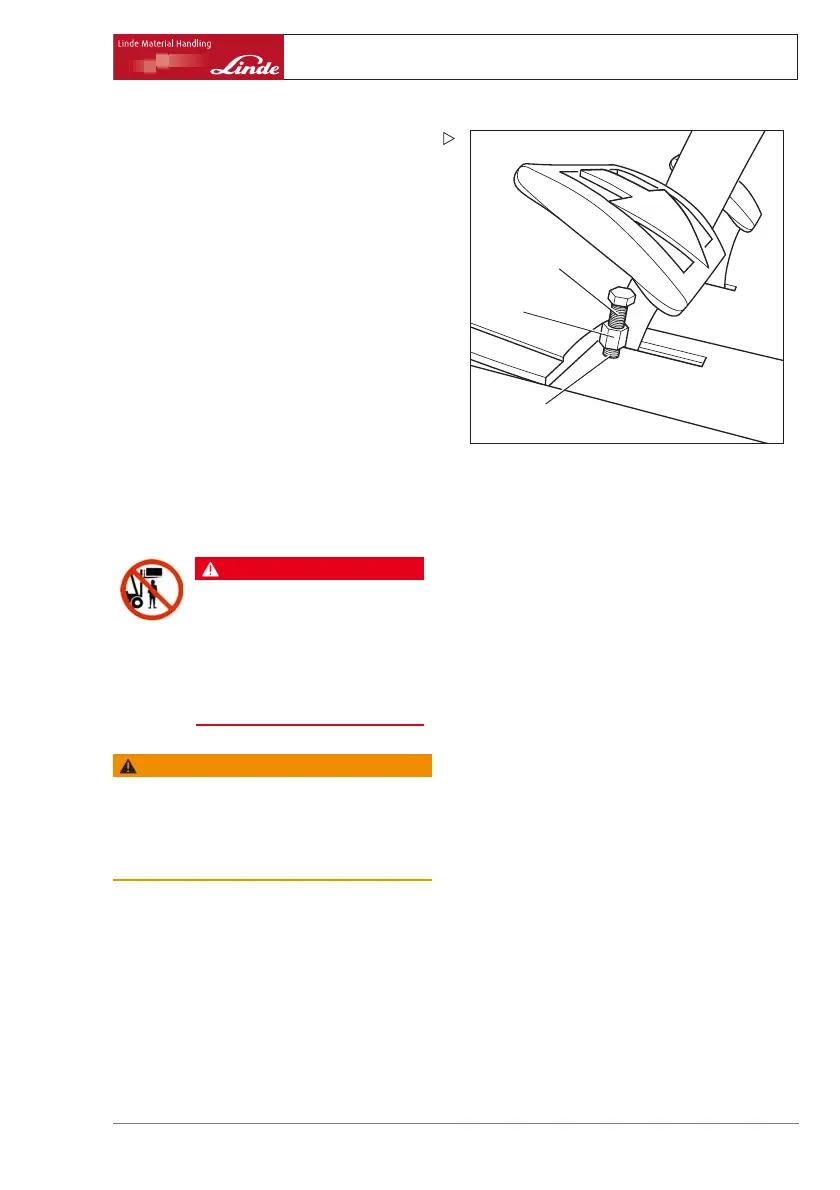

¾ Screw the hexagon head screw M8 x 20 (3)
half-way into hexagon nut M8 (2) (DIN 6330,
6331, 6334).
¾ Screw the hexagon nut (2) onto the ex-
isting hexagon head screw M8 (1) until
one hexagon head screw (3) hits the other
hexagon head screw (1).
¾ Lock them into the hexagonal nu
t(2).
¾ Remove lift mast.
After refitting the lift mast the additional stop
should be removed.
Loading
Crane lifting
DANGER
When using a crane to load the truck,
be particularly careful to ensure
that no-one is in the working area of
the crane! Observe loading weight
according to nameplate.
Do not walk under suspended loads!
Only use round slings and a loading
crane with a sufficient lifting capacity.
WARNING
Loading by crane may cause damage to the tilt
cylinder and the cover sheet on the counterweight.
Retract the lift mast, retract the tilt cylinder as far as
the stop and lift the truck in such a way that it hangs
to the front.
¾ Attach round slings to the suspension
points.
The suspension positions on the truck are not
specially marked.
Operating Instructions – 393 807 1001 EN – 08/2008 89
