Overview 3
Controls

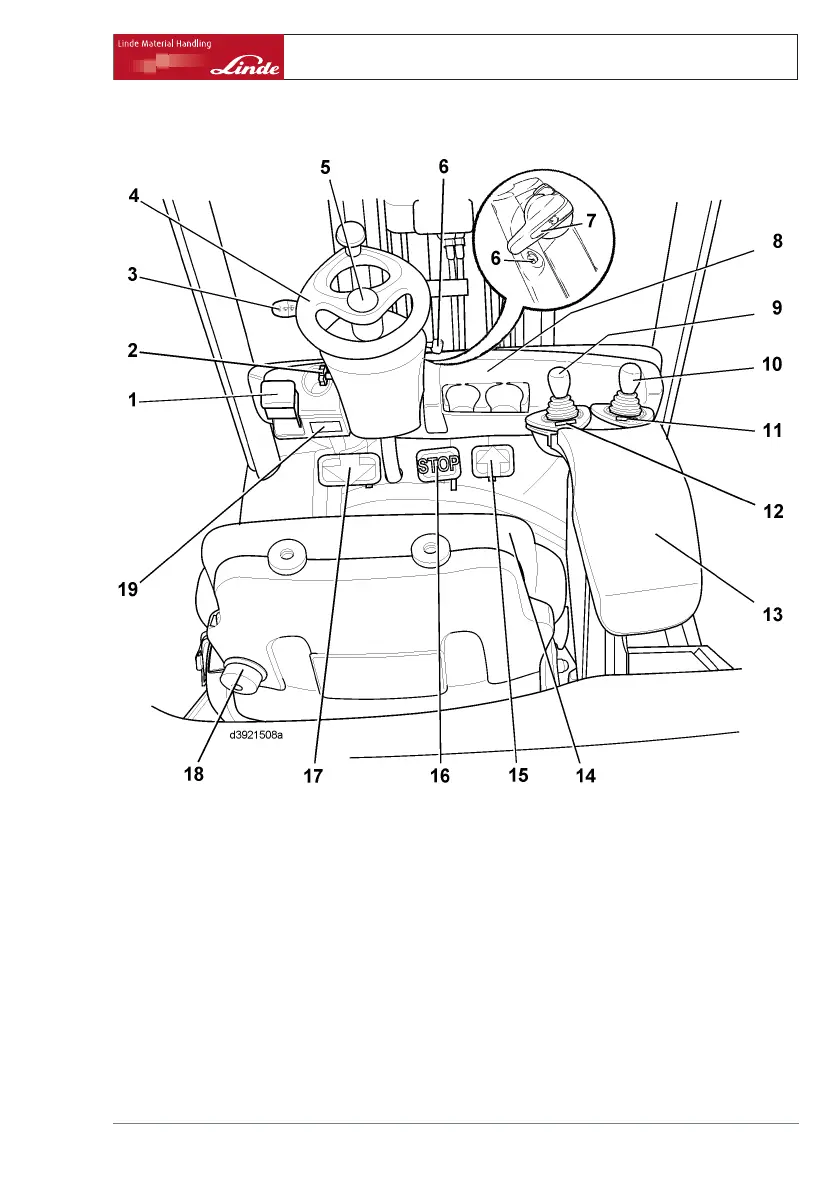

Controls
1 Parking brake handle (version 1)
2 Clamping screw for adjusting the steering
column
3 Combi-lever for wiper/washer system and
flasher (special equipment)
4 Steering wheel / hydrostatic steering
5 Signal button
6 Startingswitchwithswitchkey
7 Parking brake lever (version 2)
8 Storage compartment
9 Operating lever (joystick) for operating
hydraulics
10 Actuating lever (joystick) for auxiliary hy-
draulics (attachments) (special equipment)
11 Icon sticker for additional hydraulics (attach-
ments) (special equipment)
12 Icon sticker for operating hydraulics
13 Armrest on driver’s seat
14 Driver’s seat
15 Forward travel accelerator pedal
16 Stop pedal
17 Reverse travel accelerator pedal
18 Lumbar support adjustment (special equip-
ment)
19 Plate: "Guaranteed sound power level"
Operating Instructions – 393 807 1001 EN – 08/2008 19
