Operation 4
Working under load
Working under load
t3921383

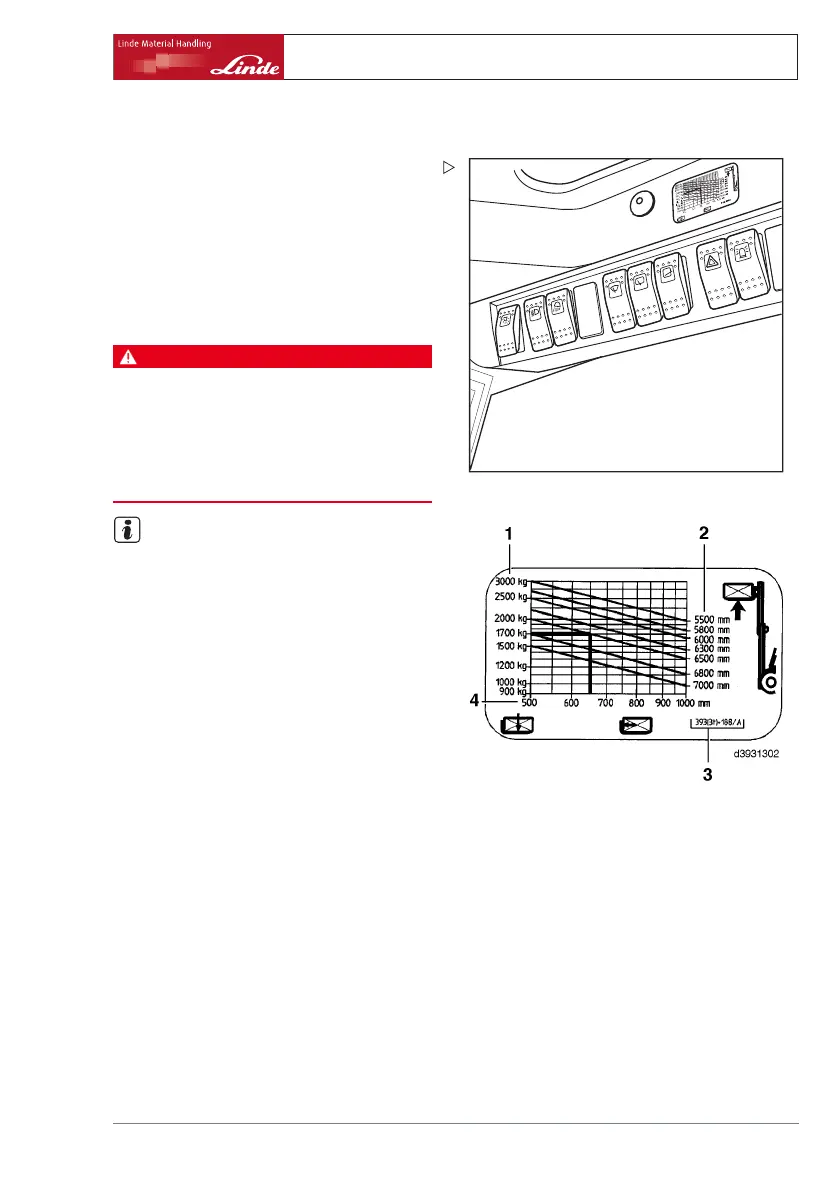

1 Max. weight of permissible loads in kg
2 Lift height in mm
3 Series designation of the forklift truck with
max. load capacity and lift mast series
4 Distance between centre of gravity of load
and fork back in mm
Before taking up a load
Before taking up a load, check the load capac-
ity diagram above the switch console on the
top right in the driver’s protective roof.
The max. permissible load is determined by
the distance of the centre of gravity of the load
from the fork back of the fork arms and the lift
height.
DANGER
The values specified in the lifting capacity diagram
or plate apply to compact homogeneous loads and
must not be exceeded as this will impair the stability
of the forklift truck and the strength of the fork arms
and lift mast.
When using attachments, observe the lifting capa-
city plate for each attachment device.
NOTE
Take the load restriction into account and con-
sult your authorised dealer
•
before transporting off-centre or swinging
loads
•
before transporting loads with the lift mast
tilted forward or the load not close to the
floor
•
loads involving a large centre of gravity
distance
•
before using attachments and additional
equipment
•
before transporting loads in a wind force of
6 and upwards.
Example
Load centre-of-gravity distance: 650 mm
Load height to be lifted: 6500 mm
¾ Trace a vertical line from a load distance of
650 mm to its point of intersection with the
line for a lift height of 6500 mm.
¾ At the point of intersection with the horizon-
tal line read off the max. permissible load to
the left.
The maximum load in this example is 1700 kg.
Operating Instructions – 393 807 1001 EN – 08/2008 81
