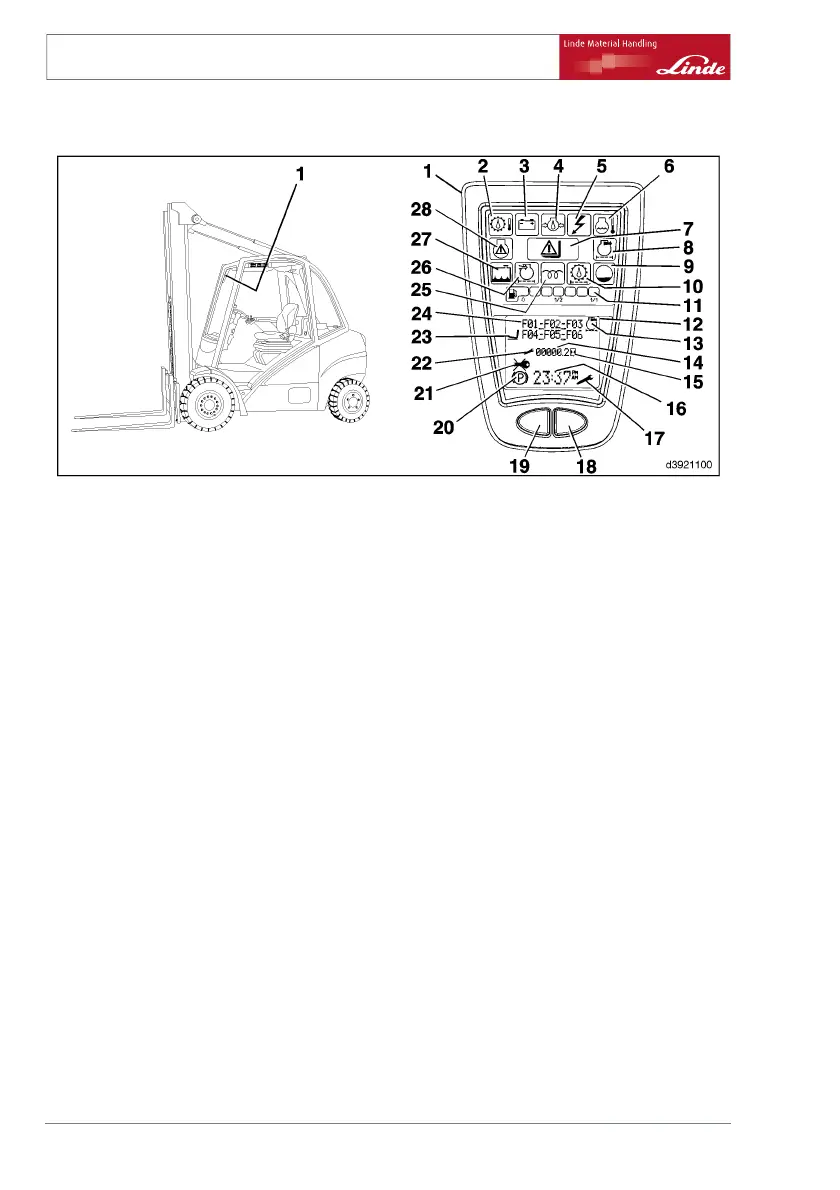

3 Overview
Indicator unit
Indicator unit
1 Indicator unit
2 Hydraulic oil temperature indicator
3 Charging indicator
4 Engine oil pressure indicator/engine oil level
indicator
5 Electrical control system fault
6 Engine temperature indicator
7 Load/overload indicator (special equipment)
8 Particulate filter alarm
9 Level display (special equipment)
10 Hydraulic oil microfilter indicator (special
equipment)
11 Fuel tank level display
12 Display
13 Symbol for Particulate filter
14 Operating hours display
15 Operating hours symbol
16 Time display
17 Service interval exceeded symbol
18 Function button
19 Reset button
20 Symbol for Parking brake applied
21 Symbol "do not start the engine"
22 Symbol for operating hours until next service
(shown for only 4 s on display (14))
23 Symbol for Lift mast position sensing
24 Text field
25 Glow plug indicator
26 Air filter vacuum indicator
27 Cooling water level indicator
28 Warning light - gas system
(2) Hydraulic oil temperature indicator (red)
Lights up when the specified temperature limit
is reached. A buzzer also sounds when the
permissible temperature limit is reached. If the
"engine protection"* function is activated, the
vehicle only moves at crawling speed (approx.
2 km/h). Error code
X205 is displayed in text
field (24).
• Insufficient oil in the hydraulic system
• Incorrect oil used
• Oil filter clogged
• Oil cooler clogged
• Switch off the buzzer with the reset button
(19).
(3) Charging indicator (red)
Lights up when there are malfunctions in the
electrical system.
• Ribbed V-belt split or ribbed V-belt tension
too slack
• Ribbed V-belt tensioner defective
• Cable defective
• Alternator defective
• Charge controller or cut-out relay defective.
