Operation 4
Special equipment

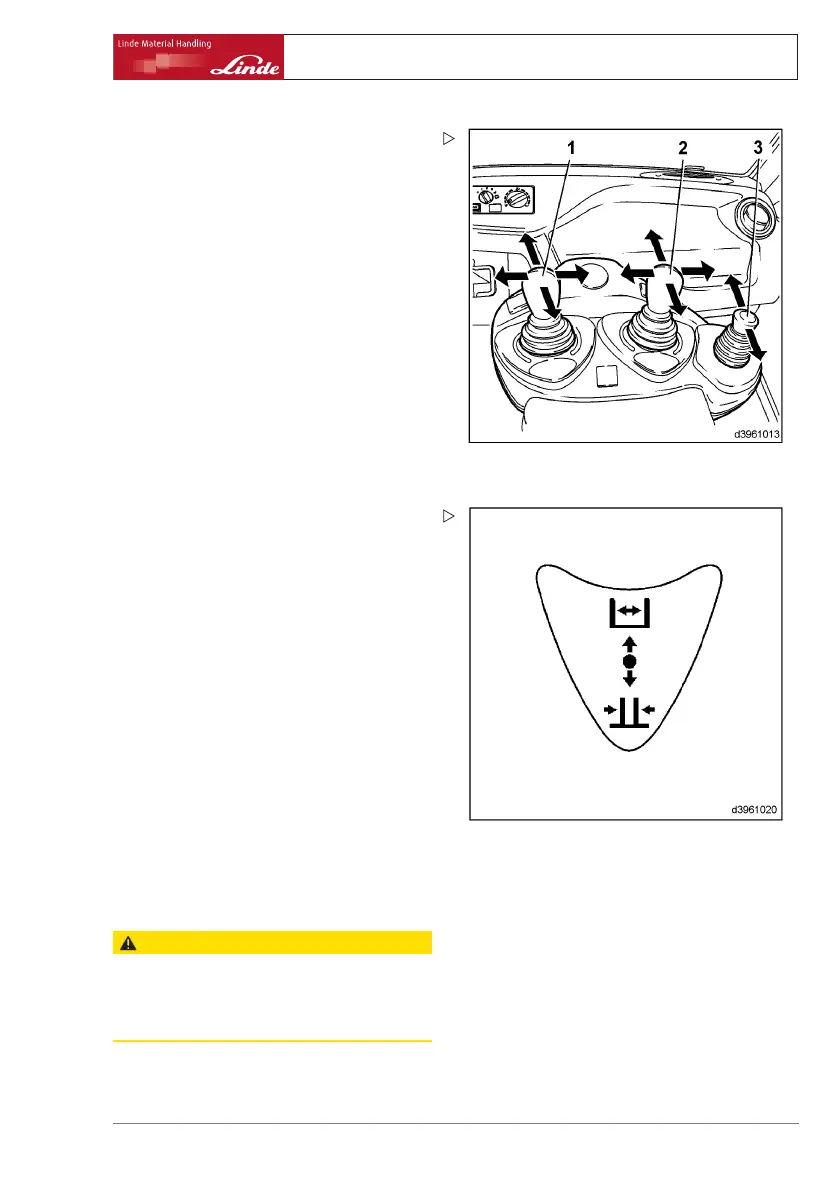

¾ Push actuating lever (2) to the left.
Sideshift moves to the left.
¾ Push actuating lever (2) to the ri
ght.
Sideshift moves to the right.
Operating the clamp
¾ Release the actuating lever (2) by pressing
down on the button.
¾ Push actuating lever (2) forwards
.
Clamp opens.
¾ Pull actuating lever (2) backwards.
Clamp closes.
Operating fork adjustment
¾ Push actuating lever (3) forwards.
Fork arms move outwards.
¾ Pull actuating lever (3) backwards.
Fork arms move inwards.
Adjust driver’s seat with swivel de-
vice
CAUTION
The driver’s seat must not swivel while the forklift
truckisinuse.
It should therefore be ensured that the swivel de-
vice is locked.
The driver’s seat with swivel device offers
better rear visibility when reversing over long
Operating Instructions – 393 807 1001 EN – 08/2008 63
