5 Maintenance
Troubleshooting
1
3
2
d3941386

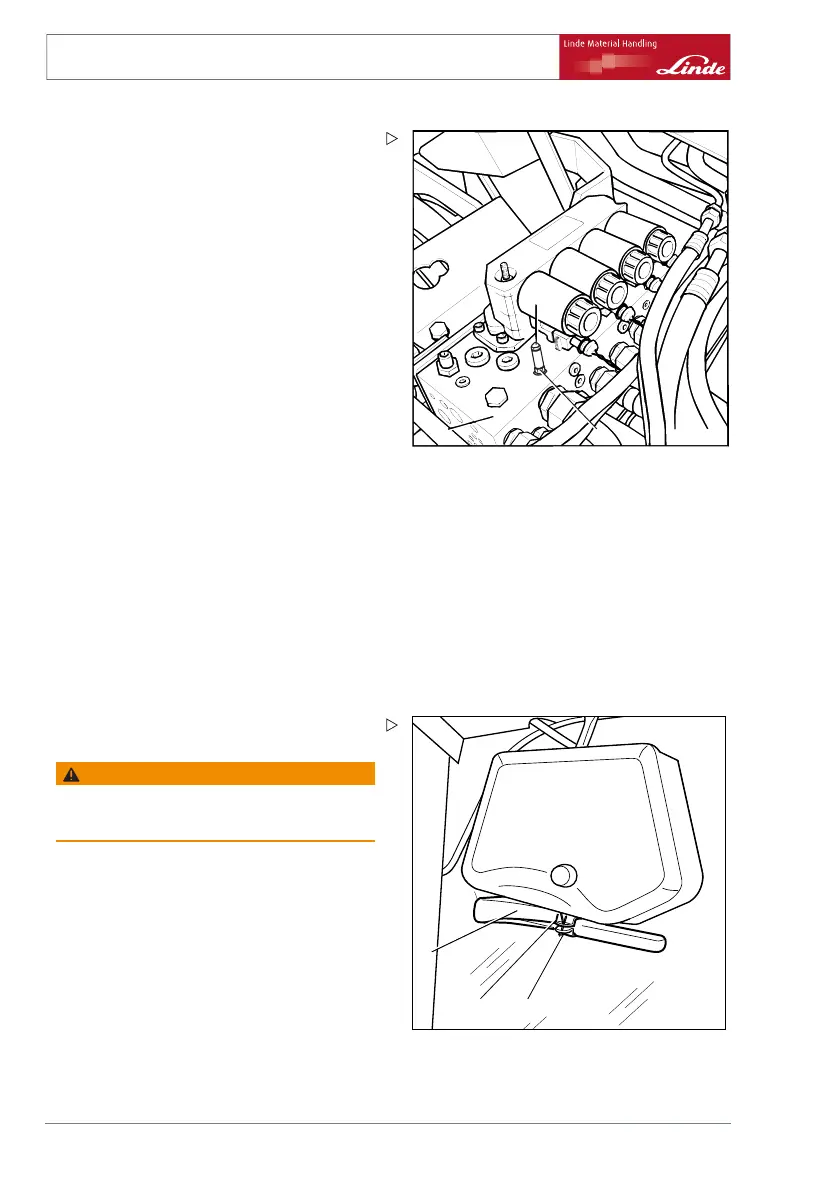

¾ Turn screw (1) back in again, in a clockwise
direction, (tightening torque 2.5 Nm), oth-
erwise the fork carriage cannot be raised
using the joystick.
¾ Tighten the self-locking nut (2) again (tight-
ening torque: 9.5 Nm).
¾ Close floor plate and bonnet.
¾ Insert the floormat.
Emergency exit for
trucks with rear
screen
If the truck is fitte
d with a front and rear wind-
screen, it may not b
e possible to dismount at
thesideifthetruc
k breaks down in a narrow
aisle. In the case o
f a dangerous situation the
operator can exit t
he vehicle at the rear wind-
screen. For this pu
rpose, the emergency exit
hammer must be used
to destroy the wind-
screen.
t3921371
1
2
3
¾ Bend up the cotter pin (1) on the mounting
(2) underneath the rear wiper motor.
WARNING
Danger of personal injury from glass splinters.
Carefully remove the glass splinter.
¾ Remove the emergency exit hammer (3)
from the mounting and carefully break the
windscreen.
¾ Carefully dismount to the rear.
