4 Operation
Loading / Transporting
DANGER
The spring elements on the drive axle are pretensi-
oned.
Before dismantling the tilt cylinders, the lift mast
must be tilted back 2 °.
DANGER
The lift mast may fall off during
transport.
Do not move under overhead loads!

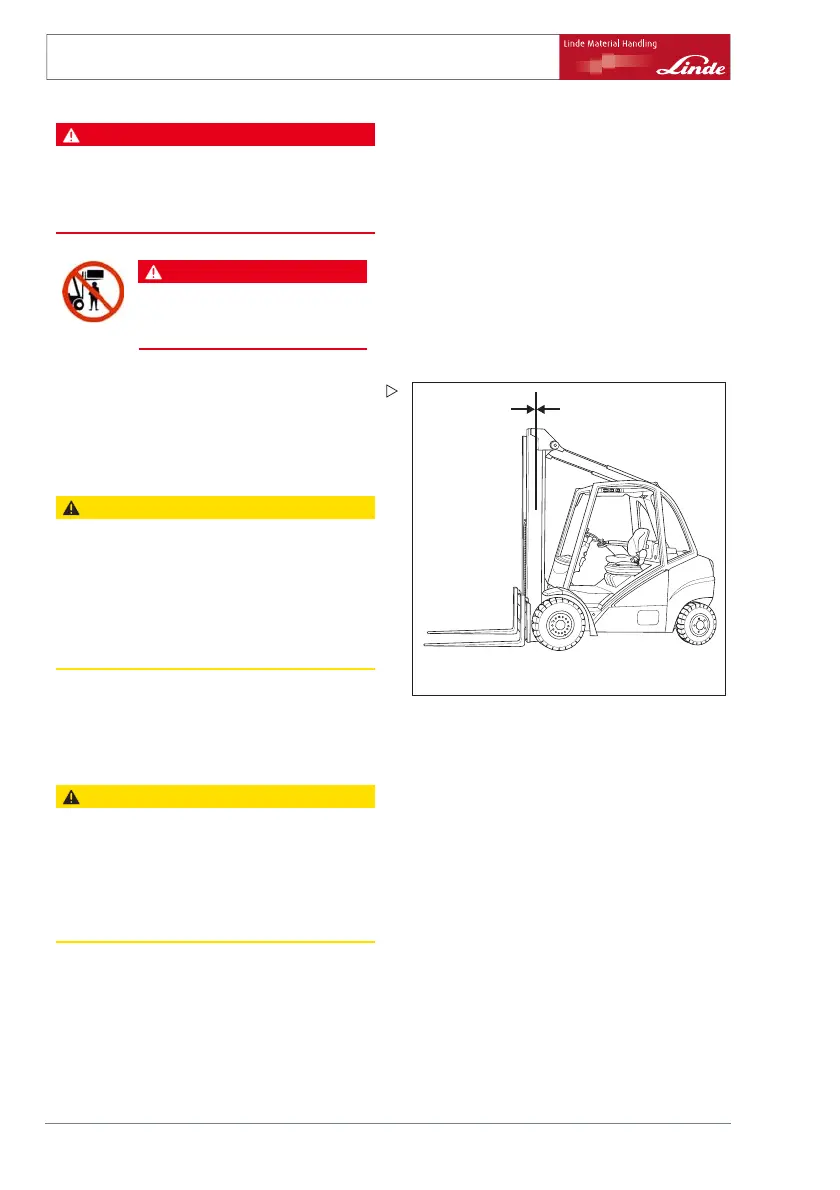

d3921469
¾ Fix the lifting gear to the traverse on the
outer mast of the lift mast at the top.
¾ When dismantling the lift mast, place the tilt
cylinders on a suitable piece of timber and
secure with a steel strap.
CAUTION
After dismantling the lift mast or tilt cylinders, the
potentiometer for the tilt angle is misaligned.
The potentiometer for the tilt angle thus has to be
readjusted after reinstalling the lift mast . When
doing so, the parking brake should be applied for
safety reasons, and any restriction in terms of the
tilt angle taken into account. Please contact your
authorised dealer.
Driving without lift mast
CAUTION
When driving without the lift mast, the speed of the
truck must be reduced for safety reasons.
Therefore, before removing the lift mast, an addi-
tional stop screw must be fitted under the reverse
travel accelerator pedal (two-pedal operation) or
accelerator pedal (single-pedal operation) to rest-
rict the speed.
¾ Switch off the engine.
88 Operating Instructions – 393 807 1001 EN – 08/2008
