4 Operation
Working under load
The same procedure should be followed for
other lift heights und centre of gravity dis-
tances. The values calculated refer to both
fork arms and a uniformly distributed load.
Wheel-slide protection chains
CAUTION
Mounting wheel-slide protection chains alters the
wheel freedom and load capacity of the forklift truck
Before wheel-slide protection chains are mounted
the standard fork carriage must be replaced by a
special fork carriage that is installed 40 mm further
forward. All other load capacity data on the basic
load capacity diagram and on the additional load
capacity plate must be reduced by 100 kg. This
load capacity reduction remains necessary even if
wheel-slide protection chains are not fitted.

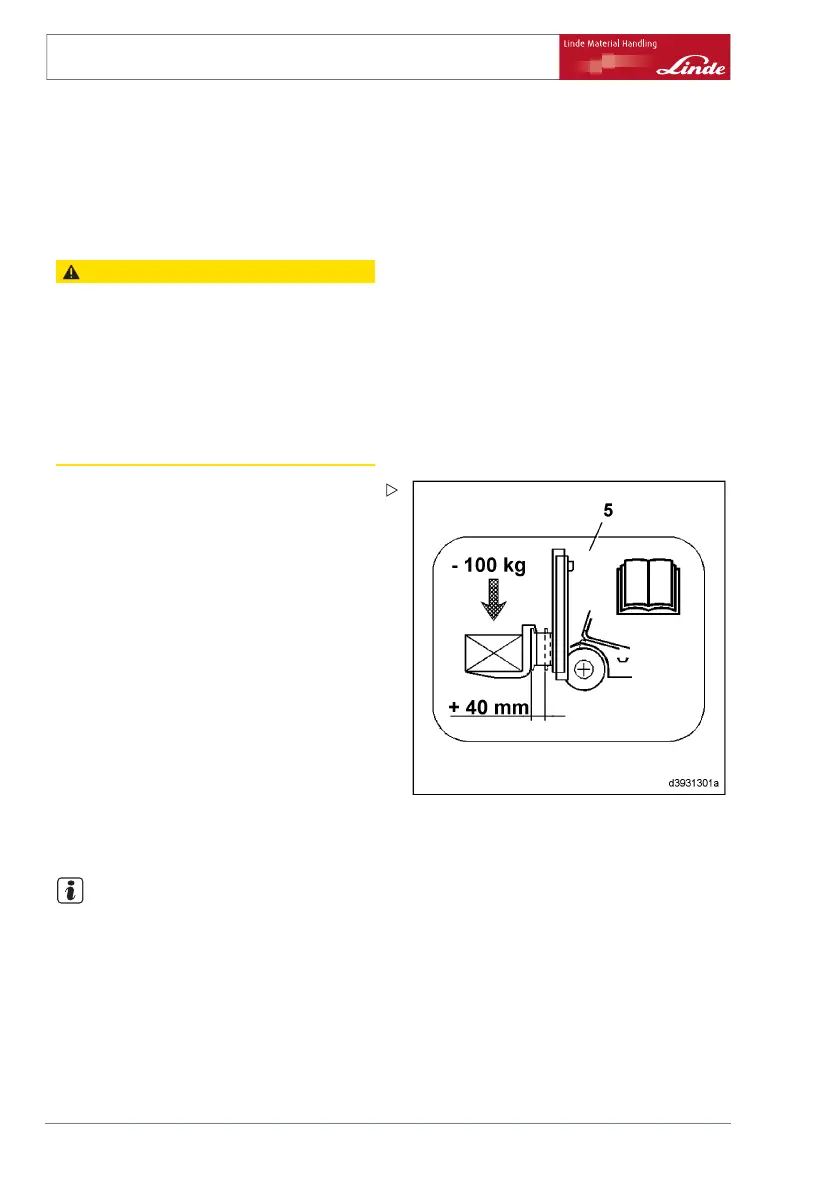

¾ In addition, attach plate (5) alongside the
basic load capacity diagram.
Adjusting the fork spread
NOTE
The load centre should be in the centre bet-
ween the forks.
82 Operating Instructions – 393 807 1001 EN – 08/2008
