5 Maintenance
Engine

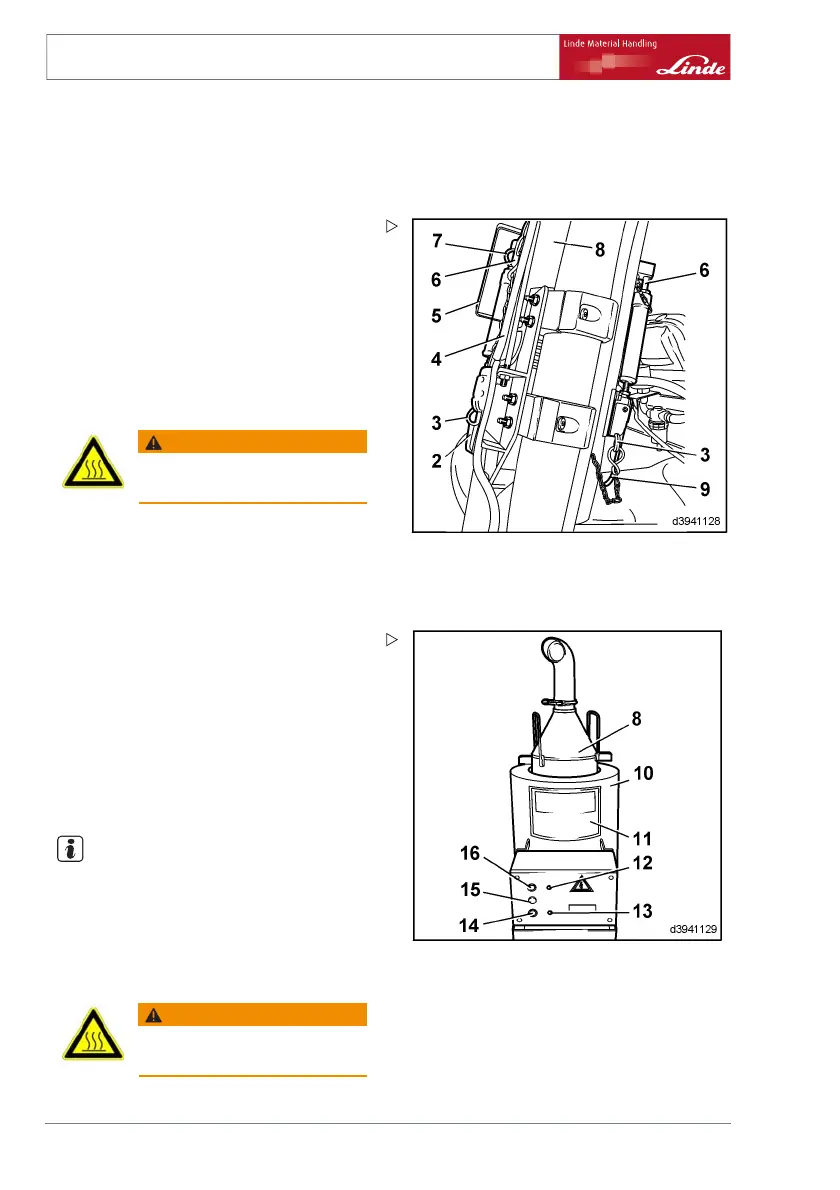

Removing the particulate filter
¾ Drive to the regeneration station.
¾ Switch off the engine.
¾ Remove the retaining split pin (3) from the
quick-locking mechanisms.
¾ Release quick-locking mechanisms (2) and
(9) and disconnect the rod (6) at the top at
the filter.
¾ Remove the retaining split pin (7
)atthe
contact protection.
¾ Fold out the contact protection (4). Use the
bracket (5) to do this.
WARNING
Danger of burns.
Use protective gloves.
¾ Remove the particulate filter (8), avoiding
impact stress.
Cleaning the particulate filter
¾ Insert the particulate filter (8) into the regen-
eration system (10).
¾ Turn on the regeneration system (10) using
the "ON" push-button (15).
¾ The operating display (12) lights up.
Regeneration is complete once the operating
display has gone out by itself.
Regeneration time: approx. 50 minutes.
NOTE
The duration of regeneration is fixed and de-
pends on the size of the filter. The duration of
the regeneration procedure is not influenced
by the amount of particulate on the filter. An
exchange filter can be burnt out when both
partially and fully covered with particulate.
WARNING
Danger of burns.
Observe the decal information (11)
.
144 Operating Instructions – 393 807 1001 EN – 08/2008
