5 Maintenance
Chassis, bodywork and fittings
d3921489
4
6
5
7

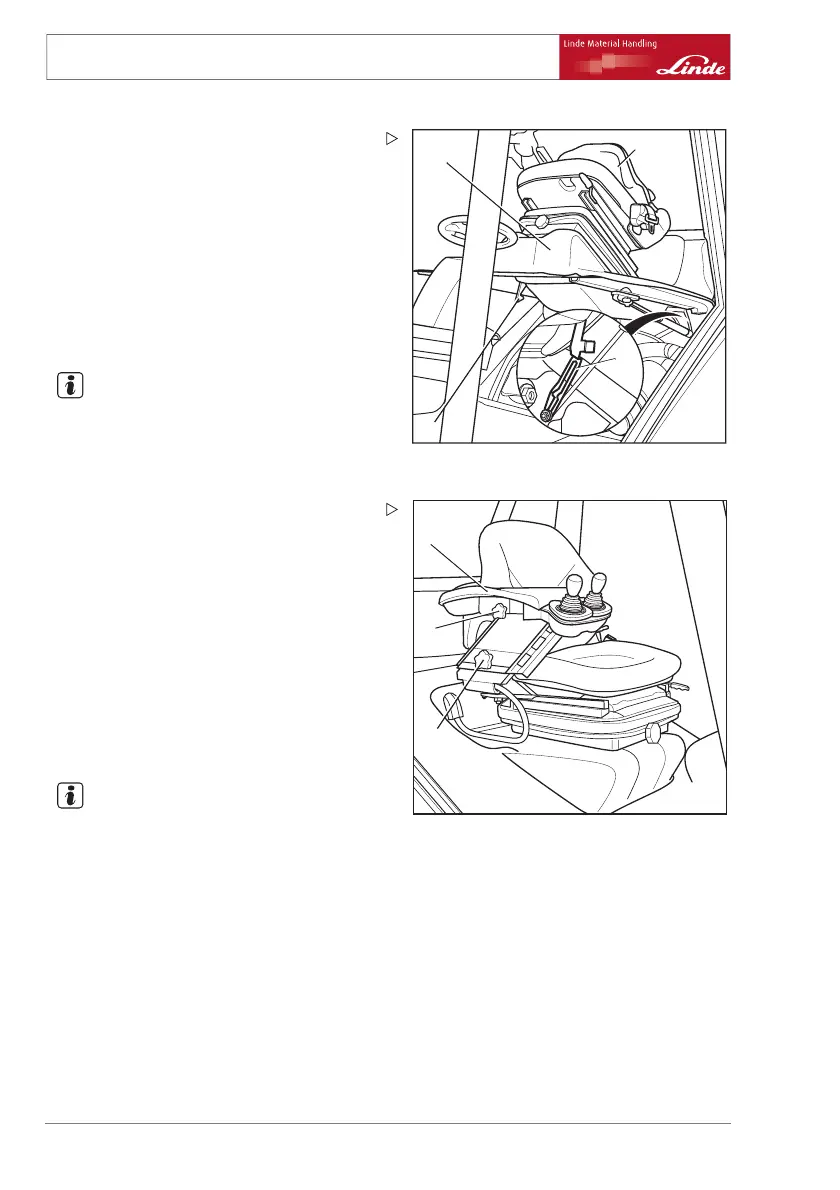

¾ Push the lever (1) fully upwards, hold it
there, push the seat back (4) fully forwards
and release the lever (1). (Only where rear
window fitted)
¾ Insert ignition key into the hole (3) and push
to release the bonnet catch; whilst so doing,
release the pressure on the bonnet catch by
pressing the bonnet in the direction of the
arrow.
¾ Open the bonnet (5) to the rear u
ptothe
stop.
NOTE
The bonnet can be opened furth
er for specific
maintenance work. Before ope
ning the bon-
net in this way, the armrest mu
st be moved all
the way down.
d3921400
10
9
8
¾ Undo the clamping screw (10) in the armrest
(8), push the armrest fully downwards.
¾ Retighten clamping screw.
¾ Release the mounting support
(7). Push
mounting support to rear.
If a rear window is installed, the armrest
fore/aft adjustment must also be pushed
all the way forwards. To do so release the
clamping screw (9), and push the armrest (8)
all the way forwards. Tighten clamping screw
again.
¾ Open bonnet all the way.
NOTE
The bonnet is held in both open
positions by
gas springs.
152 Operating Instructions – 393 807 1001 EN – 08/2008
