Operation 4
Standard equipment

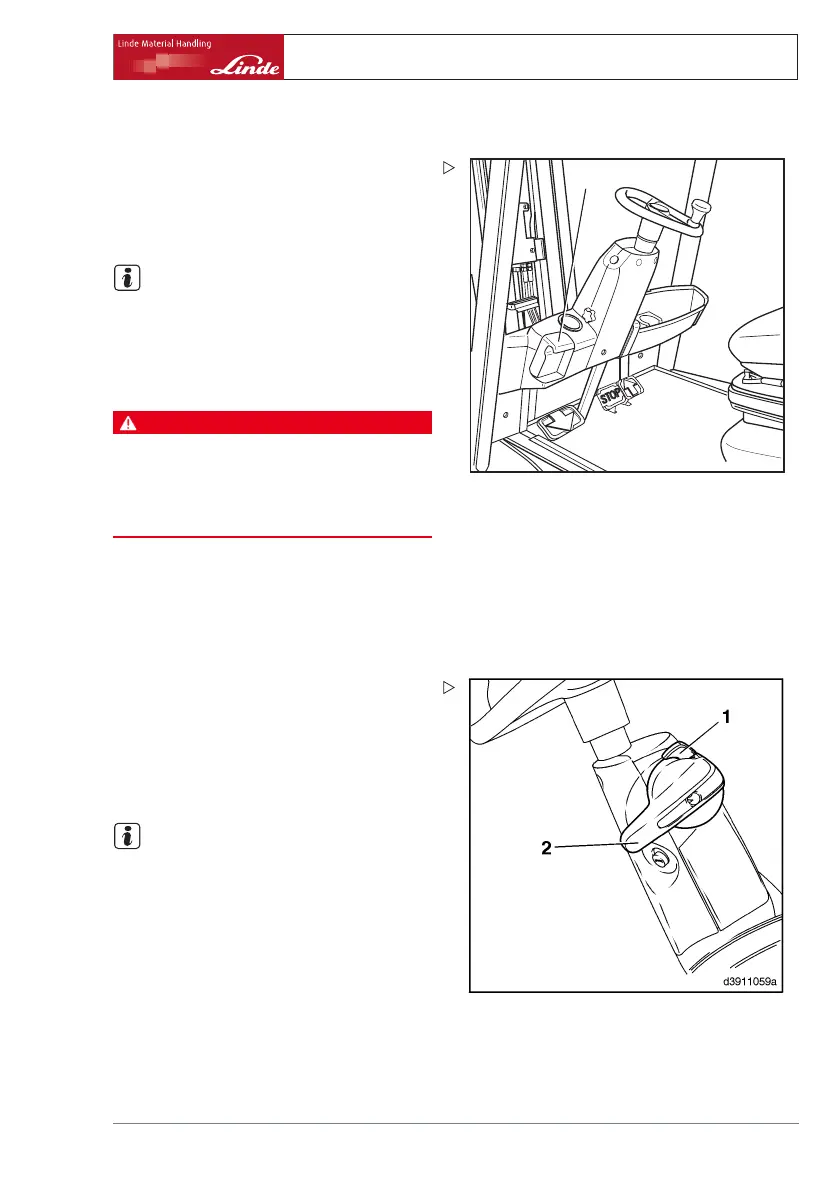

Operating the parking brake
d3921425
3
¾ Pull the parking brake handle (3) upwards.
Symbol in indicator unit will li
ght up.
Release parking brake
NOTE
The multi-disc brake will release only if the
engine is running.
¾ Press down the parking brake handle (3).
The symbol on the indicator unit goes out.
DANGER
The forklift truck must not be driven if the braking
system is defective.
Should there be any defects or wear apparent in
the brake system, please contact your authorised
dealer at once.
Parking brake version 2
The multi-disc brakes are used as the parking
brake of the fork-lift truck.
Operating the parking brake
¾ Turn the parking brake lever (2) in a clock-
wise direction to the stop.
The lock (1) engages and the icon in the indi-
cator unit lights up.
Release parking brake
NOTE
The multi-disc brake will release only if the
engine is running.
Operating Instructions – 393 807 1001 EN – 08/2008 47
