4 Operation
Standard equipment
d3921370
1
2

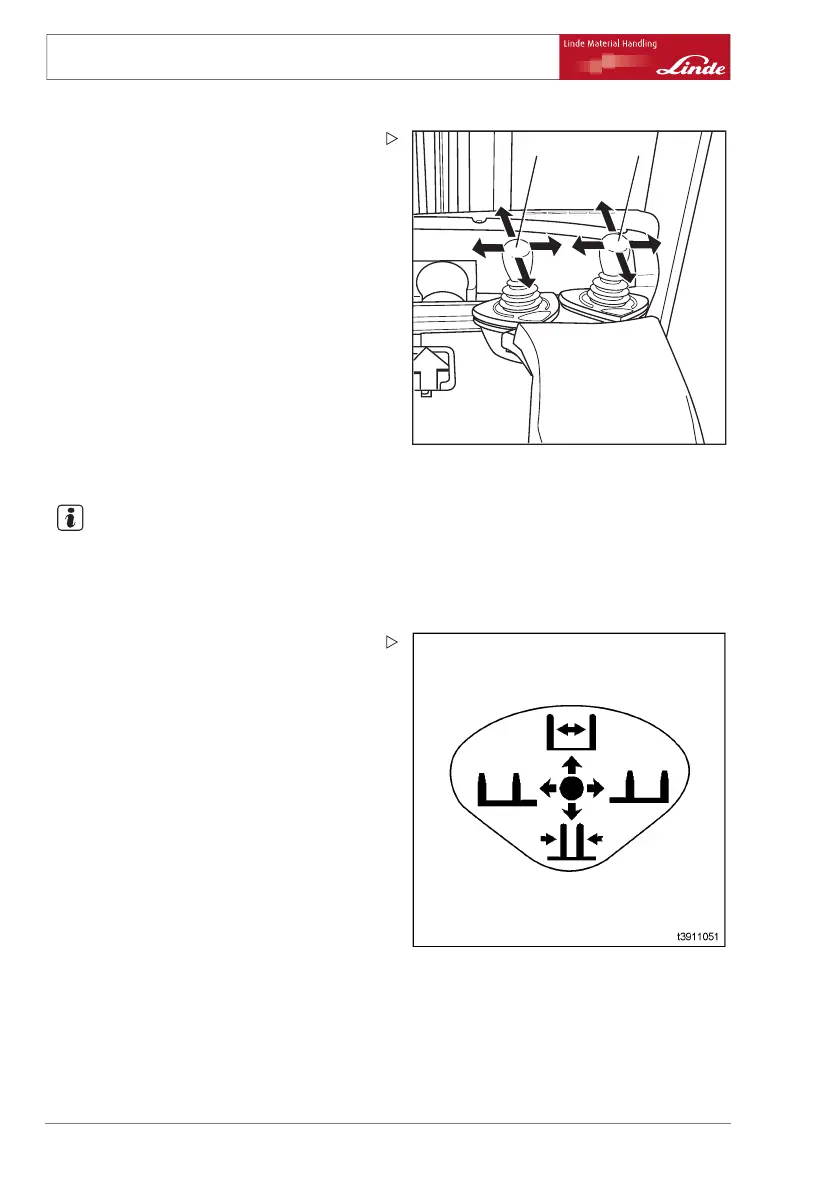

¾ Push actuating lever (2) to the left.
Sideshift moves to the left.
¾ Push actuating lever (2) to the ri
ght.
Sideshift moves to the right.
Operating the clamp
¾ Release the actuating lever (2) by pressing
down on the button.
¾ Push actuating lever (2) forwards
.
Clamp opens.
¾ Pull actuating lever (2) backwards.
Clamp closes.
Operating the fork positioner
NOTE
In order to prevent damage, do not activate the
fork positioner with a load, or with the fork arms
on the ground. Do not use the fork positioner
as a clamp.
¾ Push actuating lever (2) forwards.
Fork arms move outwards.
¾ Pull actuating lever (2) backwards.
Fork arms move inwards.
52 Operating Instructions – 393 807 1001 EN – 08/2008
