Operation 4
Special equipment

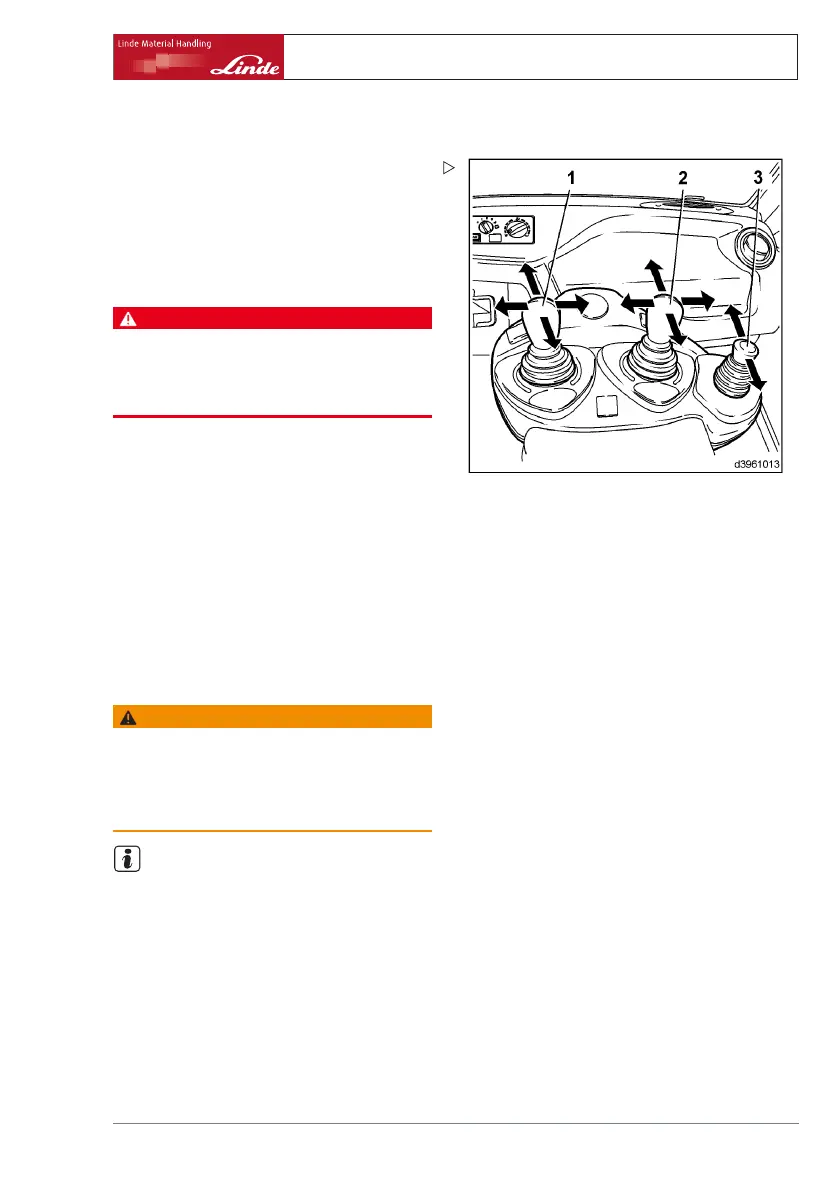

Tilting the lift mast forwards
¾ Push actuating lever (1) forwards.
Tilting the lift mast backwards.
¾ Pull actuating lever (1) backwa
rds.
Lifting the fork carriage
DANGER
When lifting the lift mast there is an increased risk
of falling and crushing.
For this reason it is not permitted to step onto the
fork arms when lifted without a protective cage.
¾ Push actuating lever (1) to the right.
Lowering the fork carriage
¾ Push actuating lever (1) to the left.
Operating attachments
The forklift truck is equipped with three addi-
tional functions (e.g. fork adjustment, rotating
unit, sideshift etc.). Take note of the operating
pressure and operating manual for the attach-
ment. Additional actuating levers are fitted for
operation (4-way lever, joystick).
WARNING
For attachments that perform a clamping operation
(e.g. bale clamp), a lockable lever (4-way lever or
joystick) must be used.
If your truck is not fitted with this equipment, please
contact your authorised dealer.
NOTE
Before fitting an attachment, a depressurisa-
tion circuit (special equipment) can be used to
depressurise the hydraulic system for the au-
xiliary hydraulics so that the connection on the
attachment can be affixed to the connection
on the fork carriage.
¾ Switch off the engine.
¾ Switch on the ignition.
Operating Instructions – 393 807 1001 EN – 08/2008 61
