LNC-Lathe New
T6-Series
CNC Operation
28
LNC T
echnology Co., Lt
d.
Solution 2

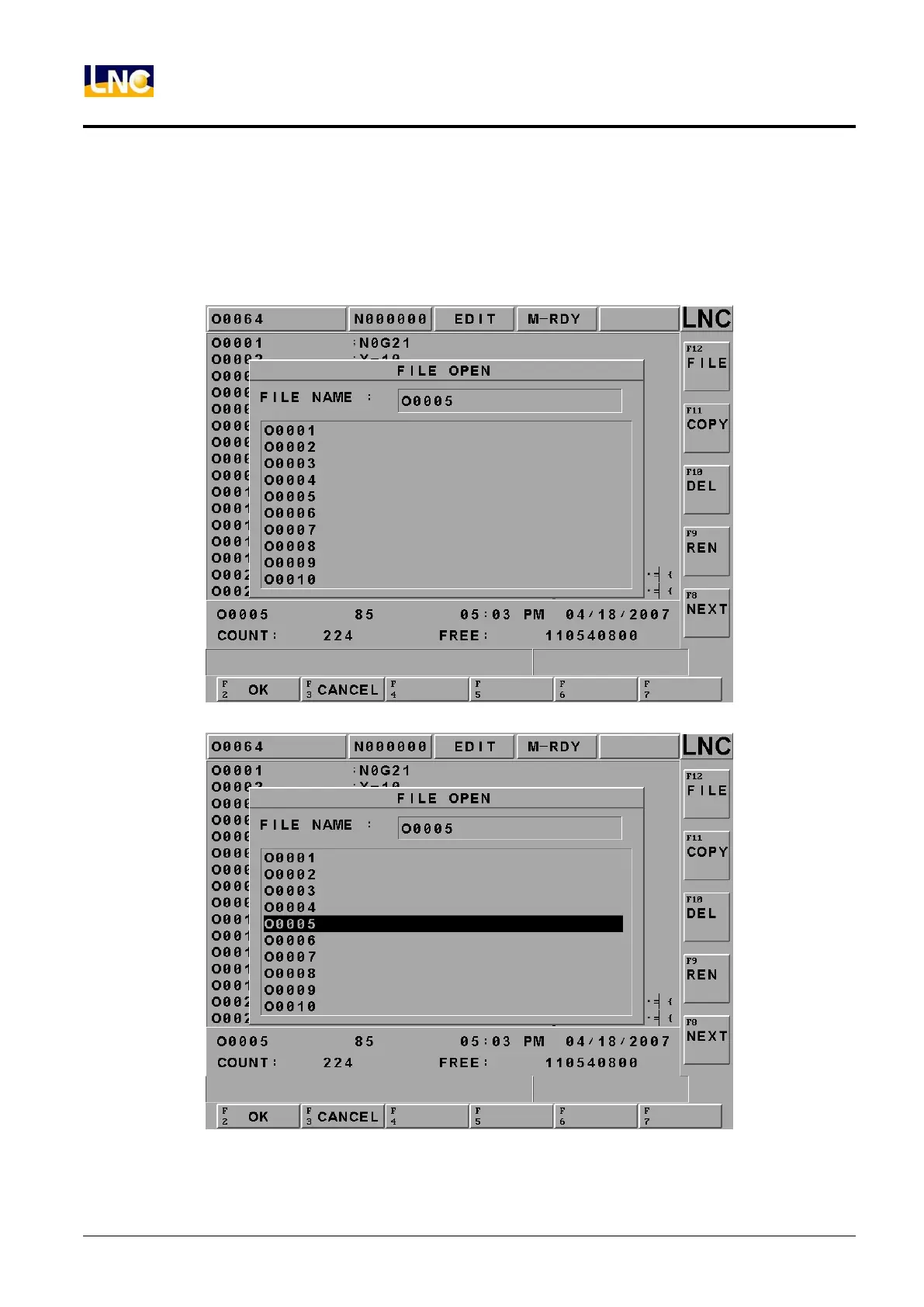

After pressing open file se
lection button, a d
ialog box will occur o
n the screen. Please c
hoose or ke
y-in the
wanted open
f
ile
name and
then pressing <INPUT>
t
o open
the
f
ile.
Or in
the dialo
g
box mode to
press left
or
right button to s
witch line for cursor
.
31
33
Table of Contents
Default Chapter
3
Table of Contents
3
1 CNC Operation
5
Operation Devices Type
5
LCD Display Device
6
Screen and Function Description
12
Display Screen Layout
12
POS Function
13
DIRMNG (File Management)
31
PROCHK (Program Checking)
42
MDI
44
COMM (Communication of Files（Rs232）)
45
Wear
47
GEOM (Geometry OFFSET)
50
SHIFT (Work Coordinate Shift)
51
Macro
52
Work
54
Lathe Easy-Cam
55
Function Description
55
Operation Procedure of How to Produce Working Path Program
55
Operation Screen and Function Key Instruction
57
Graph
80
Function Introduction
80
Set
81
Dgnos
83
Alarm
83
Iocsa
87
Mlc2
88
System
91
Working Parameter Page
93
Sysupd
94
Softpl
103
Param
105
Usropt
106
Tlim
108
Net Set
109
Change Password
115
Switch User
116
2 OP Panel Operation
117
Led Signal
118
Axis Selection
118
Mode Select
118
Spindle Rotation& Spindle Speed Adjustment Switch
120
Additional Function Selection
121
Emg-Stop
123
Cycle Start&Feed Hold
123
Feedrate/Rapid Rate Adjusting Button
124
Program Protection Lock
125
Power On/Off
125
3 Rs232 Communication Software
127
Transmission Line Preparation
127
PC End Installation (Use LNC Recon 232 Software)
128
NC End
130
Communication （RS232）-【 DNC File Upload and Download Functions
144
Path Program Upload & Save (Using Recon Software)
144
Path Program Upload & Save (Using Recon Software)
147
Path Program Upload & Save (Using General Software)
150
Path Program Upload & Save (Using General Software)
154
Setting & Attention for USB to RS232 Port
159
