LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
LNC Technology Co., Ltd. 53
1.6.3 Operation Screen and Function Key Instruction
◎ Main Function, the screen is as below

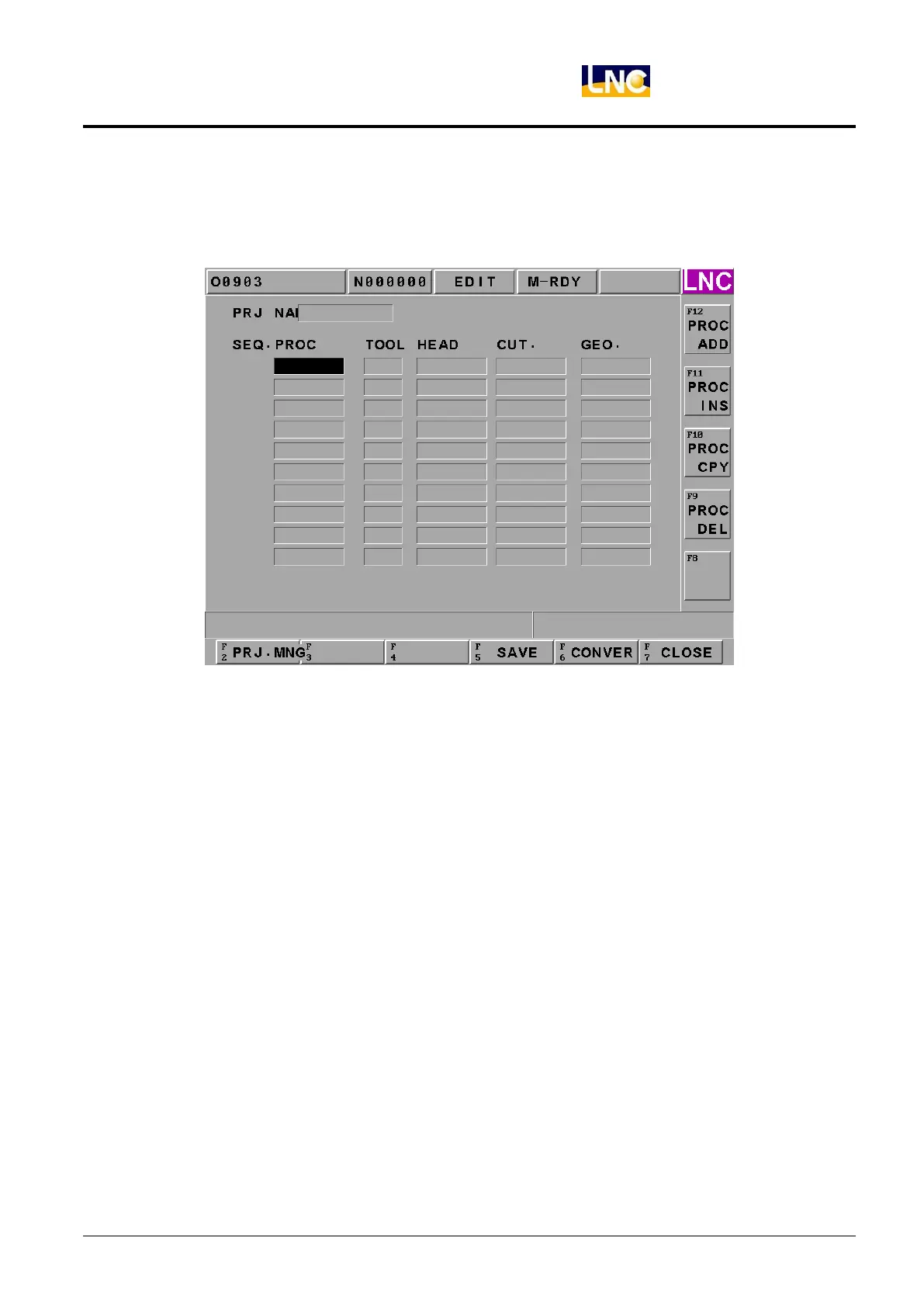

Figure 1.6-1 Main Function Page
【Column Description】
※ Project Name：display the currently opened project name.
※ Procedure：display procedure order number. The system will auto edit this column.
※ Working Method：display the selected working name. A “clear working name” dialog box will be popup when
users press【ENTER】key at this column.
※ Tool #：display the selected tool number. The screen will switch to the tool setting screen when users press
【ENTER】 at this column. 4 types of tool number, which are A type for drilling tool, B type for profile
lathe tool, C type for grooving tool, D type for screwing tool. Number means the tool number from the
tool list on the tool setting page.
