LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
LNC Technology Co., Ltd. 77
1.7.3 SET

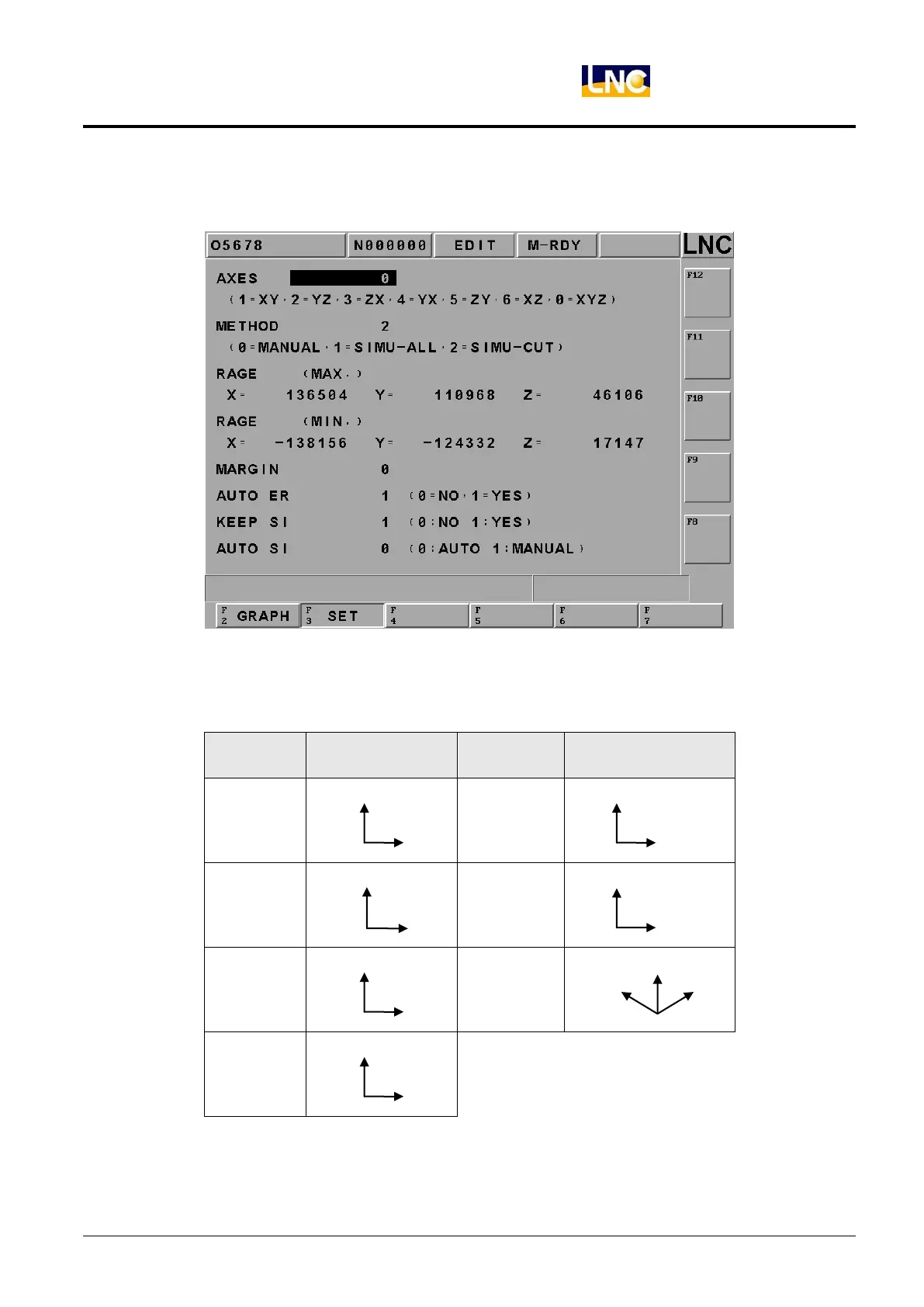

Figure 1.7-2 Main Screen of the Windows Definition
 Drawing Surface：the using coordinate view angles are （1=XY, 2=YZ, 3=ZX, 4=YZ, 5=ZY, 6=XZ, 0=XYZ）
when key-in into the path display screen.
SET
GRAPH
SET
GRAPH
1=XY
5=ZY
2=YZ
6=XZ
3=ZX
0=XYZ
4=YX
Z
Y
X
Z
Z
X
Z
X
Y
X
Y
Y
Z
Y
X
