LNC-Lathe New T6-Series
OP Panel Operation
LNC Technology Co., Ltd. 117

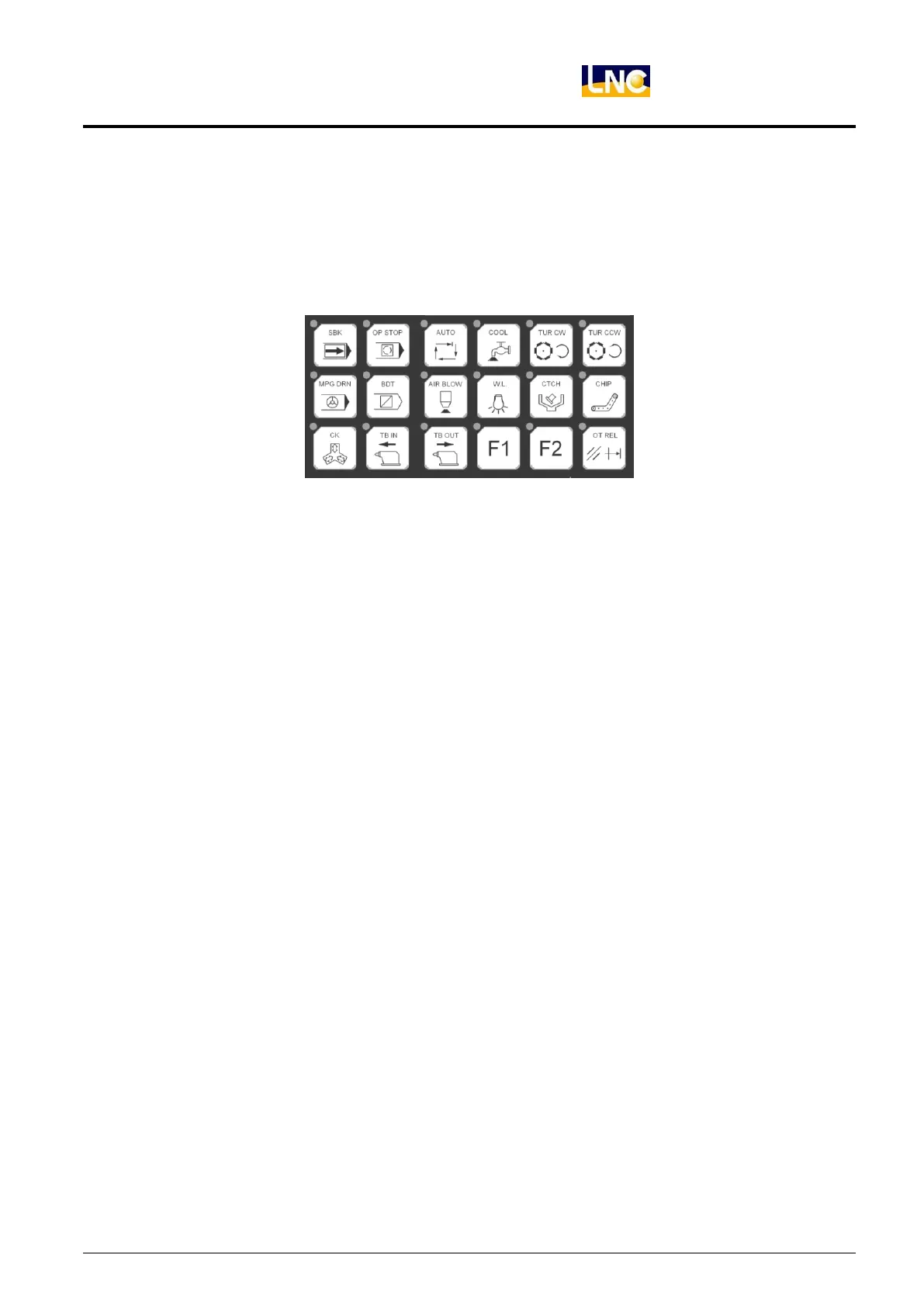

2.6 ADDITIONAL FUNCTION SELECTION
We offer several usual additional function buttons to help your operation much easier. Like OT release, or use
PLC to define buttons for yourself, details are as below：
1. SBK
Control single block button, press this button to turn on, and press again to turn off. When single block
button is ON, program will be processed by single block, and will not have continuous actions, every single
blocks need you to press CYCLE START again and again to operate.
2. OP STOP
Control optional stop button, press this button to turn on, and press again to turn off.
When program was processed to M01, it will stop, but if users want to continue, users need to press CYCLE
START to start again
3. AUTO
System in AUTO mode
4. COOL
Control coolant button, press this button to turn on, and press again to turn off.
5. TRU CW
This is manual turret CW button, under manual mode,（here means JOG、RAPID、MPG）, press this button
（CW LED ON）, turret will rotate CW, until you release this button, turret will stay at next position. This
button’s situation will not maintain, in the other words, when you release this button, the function will stop.
(Lights will be OFF)
6. TRU CCW
This is manual turret CCW button, movement is the same with TRU CW
7. MPG DRY RUN
Control MPG dry run button, press this button to turn on, and press again to turn off.
When system cycle start, MPG can control the operation and change the program coordinate to move with
servo axis. When MPG runs faster, the program will be executed faster, but it will be faster then the program
federate command. When MPG stops, the program will stop
