LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
LNC Technology Co., Ltd. 31
If the file is already existed, then the reminding windows will occur. Please confirm if want to execute
overwriting action.

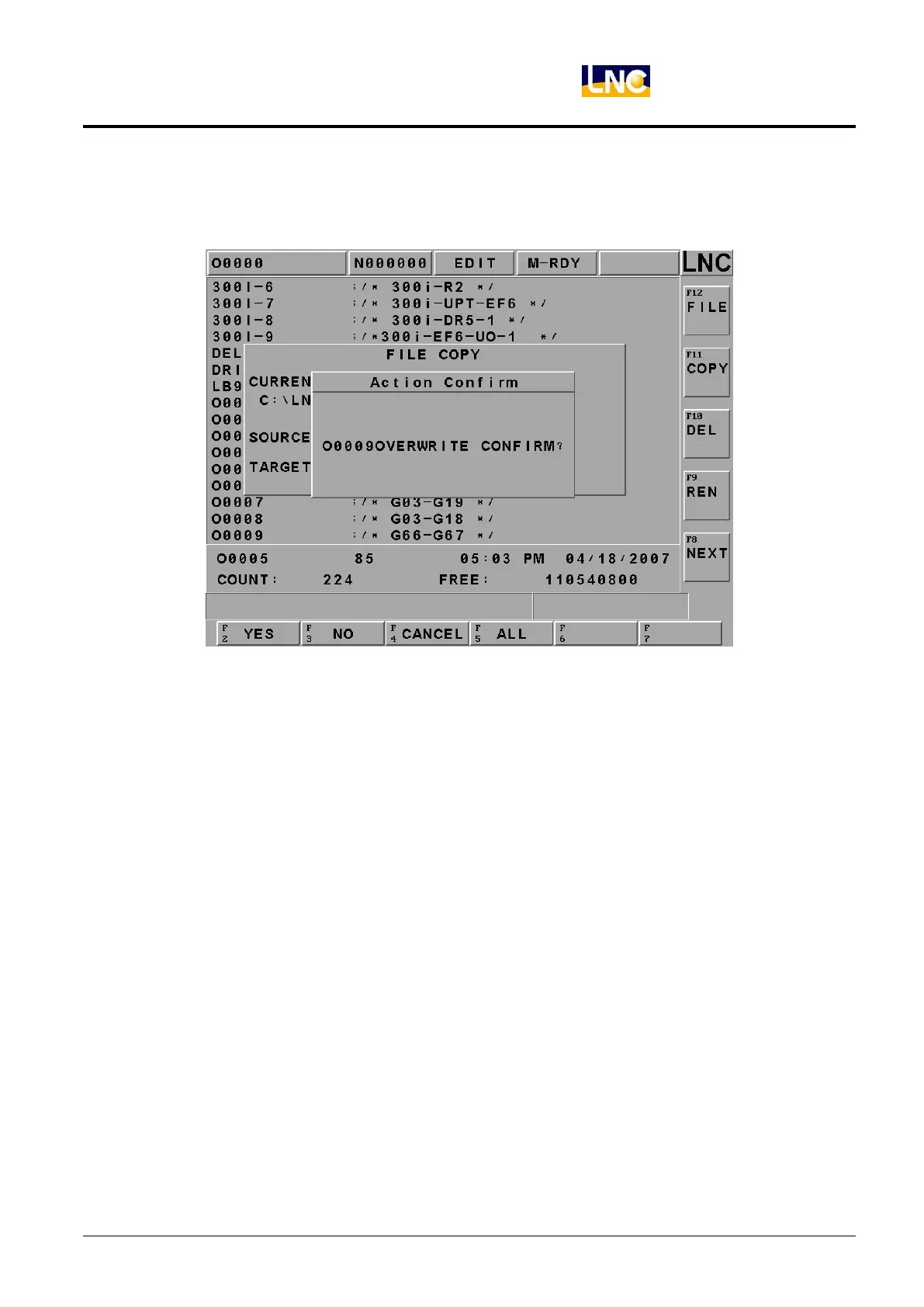

Figure 1.4-2 Overwriting
If the program is copying, the message-reminding dialog box will occur “Copying….”. When complete, the
message-reminding dialog box will show “Copy Complete”.
 【COPY】MULTI-COPY
Except single file copy, our controller also offers multi-file copy function. In the dialogue box mode, you can
press left or right button to move cursor to switch line to the left side. Press select to choose check box and
press confirm later.
You can also use【no select】【 select all】【 no select all 】to manage file.

LNC T6 Series Specifications

General

Brand	LNC
Model	T6 Series
Category	Controller
Language	English
