LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
42 LNC Technology Co., Ltd.
 【SEND】
Before using RS232 function, please confirm whether or not the hardware connection is correct. Also, the
setting of RS232 transmitting protocol and remote device must be the same.

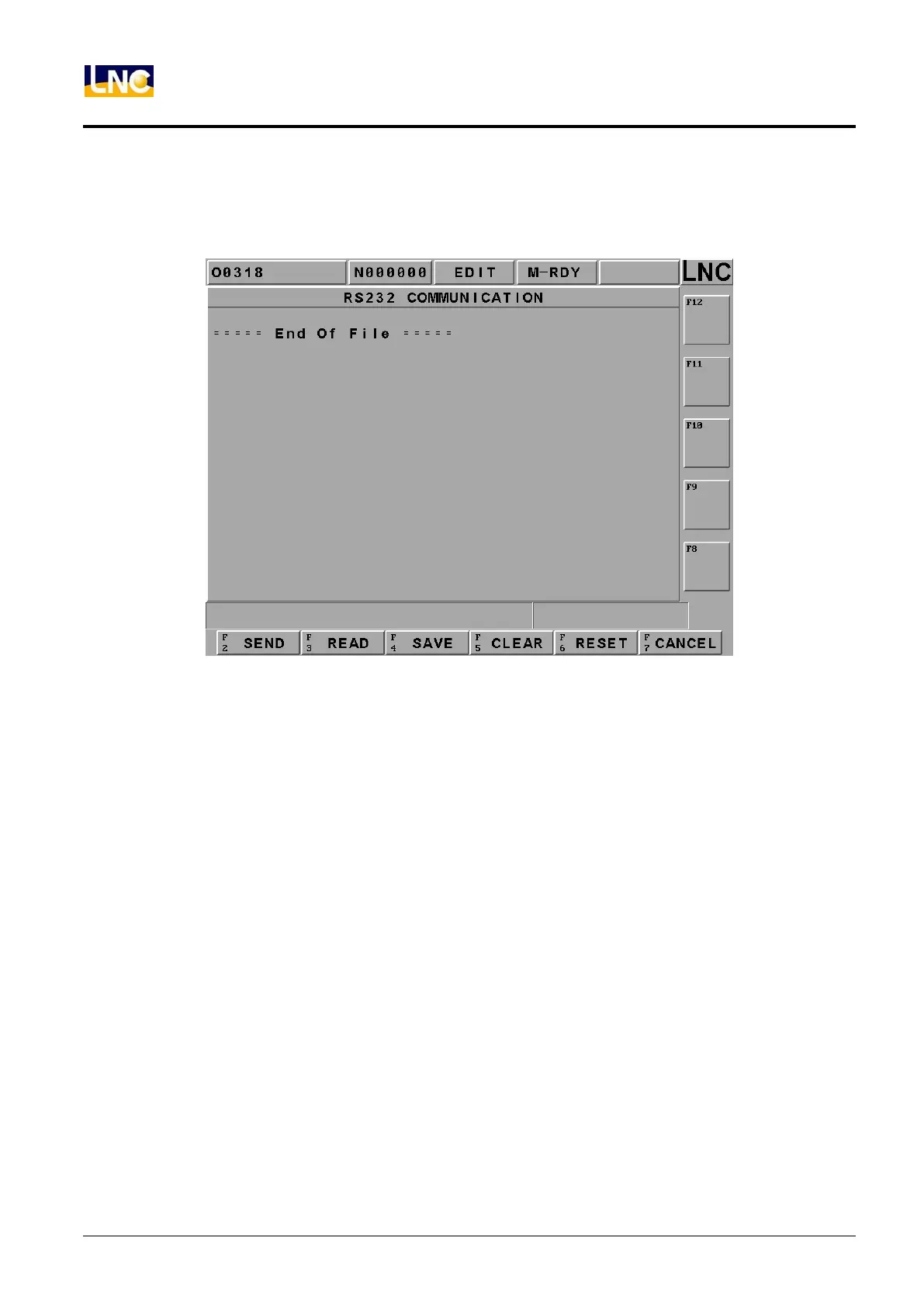

Figure 1.4-7 send main screen
【SEND】Before pressing send button, the file select window will be pop up. After choosing the file you want
to send, press confirm to send by RS232.
【READ】Before PC starts transmitting, must pressing this function key in order to let the system to prepare
to receive data.
【SAVE】When external device send a program file to controller’s RS232 window, press this button to
choose save directly with file path and name or save as other files.
【CLEAR】Giving up and clearing program files in the windows.
【RESET】Giving up file transmitting and resetting communication deal in order to build up connect with
RS232.
Note：Detail information; please refer to RS232 communication software chapter.
