Checking Unit and Drive Status through 3DM2
www.lsi.com/channel/products 135
Viewing a List of Drives
You can see a list of drives connected to your 3ware RAID controller, and see
additional detail about each of those drives.
To view a list of drives in 3DM2
• Choose
Information > Drive Information from the main menu in 3DM2.
On the Drive Information page, you can access details about any of the
drives listed by clicking the link for that drive in the
VPort column.
For more information about the Drive Information page, see page 195.

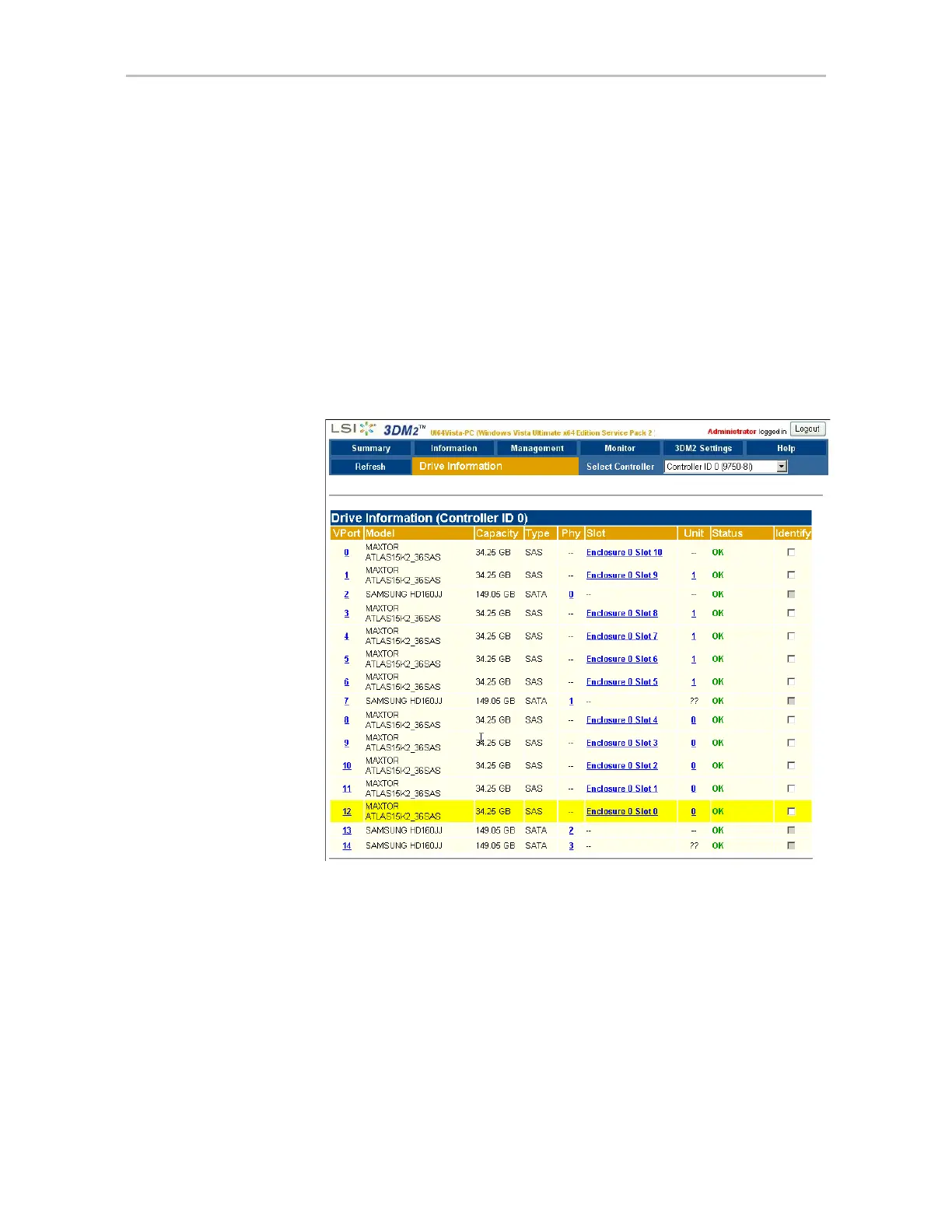

Figure 69. Drive Information Page
To view a list of drives in 3BM
1 On the main 3BM screen,
Tab to Information and press Enter.
2 On the pop-up menu, select
Drives and press Enter.
3 On the Drive Information page, use the arrow keys to move from one
drive to another.
Details about the selected drive are displayed in the bottom of the page.
