Tip: You can scroll both sections of the Drive Information page to bring
additional drive information or drives into view. Press
Tab to move
between the two sections.

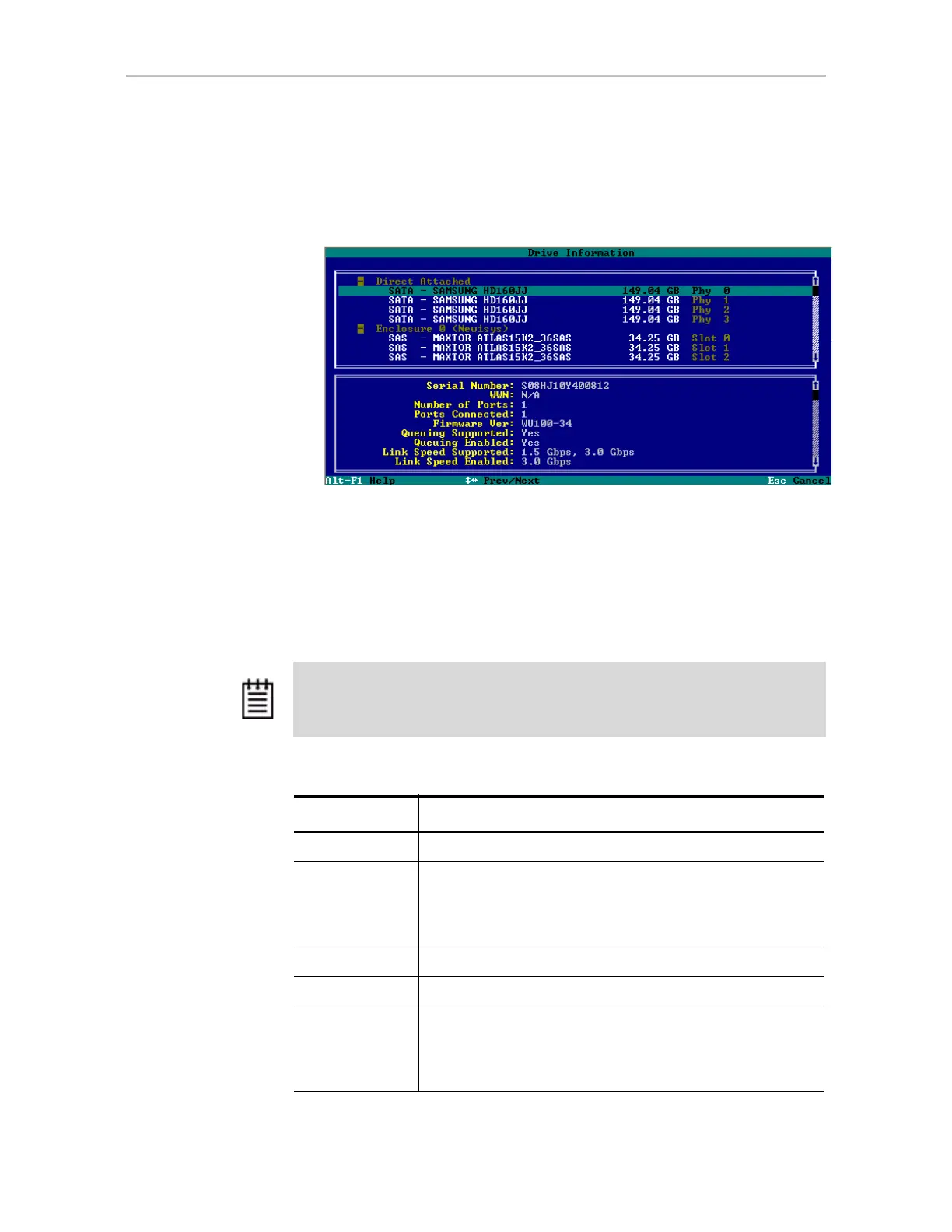

Figure 70. Drive Information page (3BM)
Enclosure Drive LED Status Indicators
If you have a supported enclosure or chassis, the LEDs on your enclosure may
be able to provide some status information about your drives and units. (You
can find a list of supported enclosures from the Data & Interoperability tab, on
http://www.lsi.com/channel/support/marketing_resources.)
Note: The following table is an example of how LEDs may be used. Check with
your chassis or enclosure documentation for more details. Not all features may be
supported or implemented in the same way on all chassis.
Table 11: Meaning of LED Colors and Behavior
Color Drive Status
Solid green OK
Blinking green Identify
This occurs when you have used the Identify command in
3DM2 to locate a particular drive or unit. (See “Locating a Drive
by Blinking Its LED” on page 139.)
Black No drive
Solid Amber Hot spare
Blinking amber Rebuilding
The drive in this slot is part of a RAID unit that is currently
rebuilding. You can continue to use the unit. For more
information, see “Rebuilding Units” on page 154.
