Unit Details page
www.lsi.com/channel/products 193
Name. If a name has been given to this unit, it shows here. If it is empty, no
name has been assigned. You can name your unit in the
Unit Names section
of the
Management >> Controller Settings page.
Type. The type of unit, specified during configuration: RAID 0, RAID 1,
RAID 5, RAID 6, RAID 10, RAID 50, or Single Disk. For details about each
of the RAID levels, see “Available RAID Configurations” on page 6.
Capacity. The logical capacity (size) of the unit. (1 KB defined as 1024 bytes)
Status. The operational status of the unit: OK, Rebuilding, Initializing,
Migrating, Verifying, Degraded, or Inoperable (missing drives). When a unit
is Rebuilding, Initializing, Migrating, or Verifying, the percentage (%)
complete is also shown. For an explanation of the statuses, see “Unit Statuses”
on page 137.
Identify. Check this box to cause the LED for the drives associated with this
unit to blink in the enclosure. If the box is grayed, identify is not supported.
Unit Details page

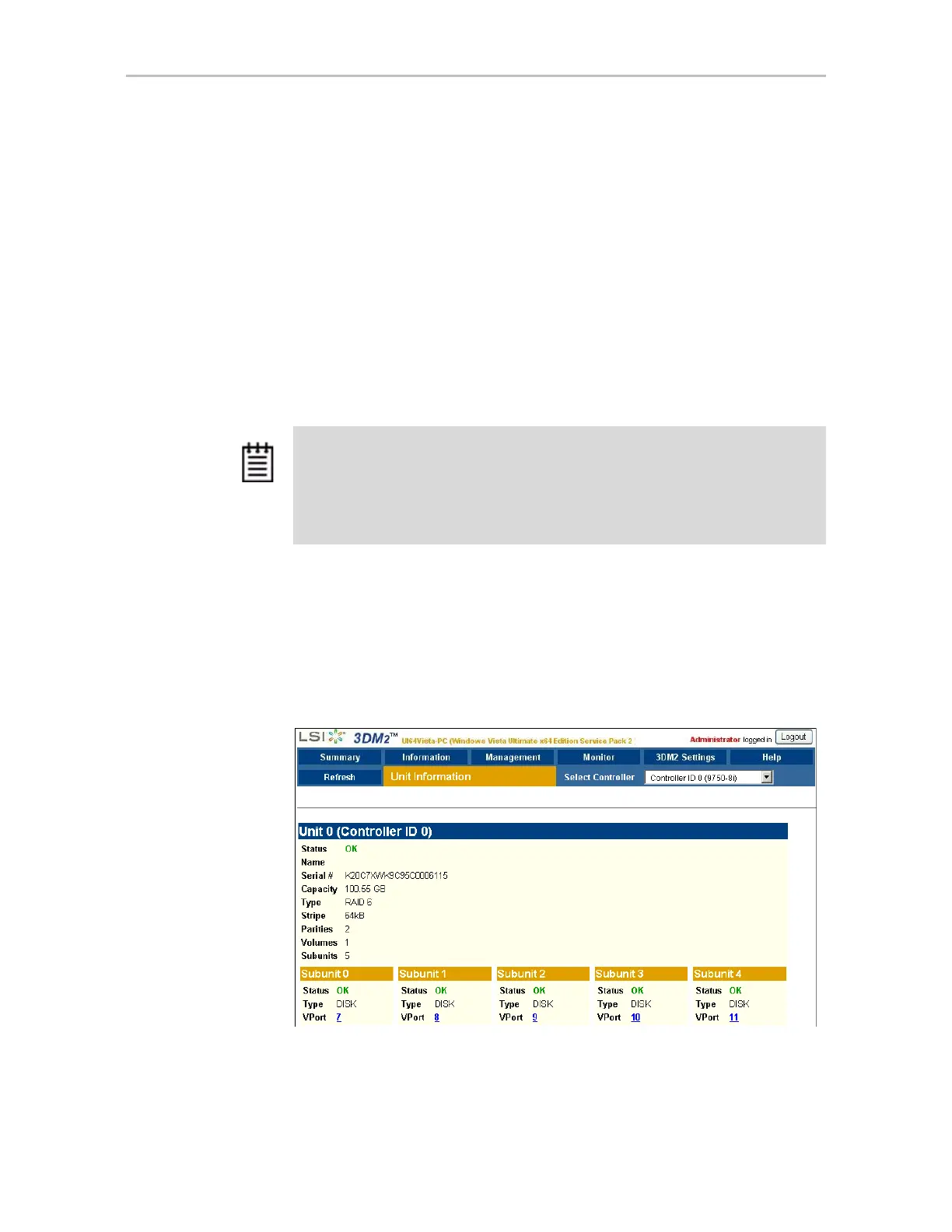

Figure 97. Unit Details Page
The Unit Details page appears when you click an ID number on the Unit
Information page. Because it is a sub-page of Unit Information, the page title
Note: If an asterisk (*) appears next to the status of a unit, there is an error on one
of the drives in the unit. This feature provides a diagnostic capability for potential
problem drives. The error may not be a repeated error, and may be caused by an
ECC error, SMART failure, or a device error. To see if this error condition still exists,
rescan the controller; rescanning will clear the drive error status if the condition no
longer exists.
