Chapter 11. 3DM2 Reference
190 3ware SATA+SAS RAID Controller Card Software User Guide, Version 10.2
Controller Summary page

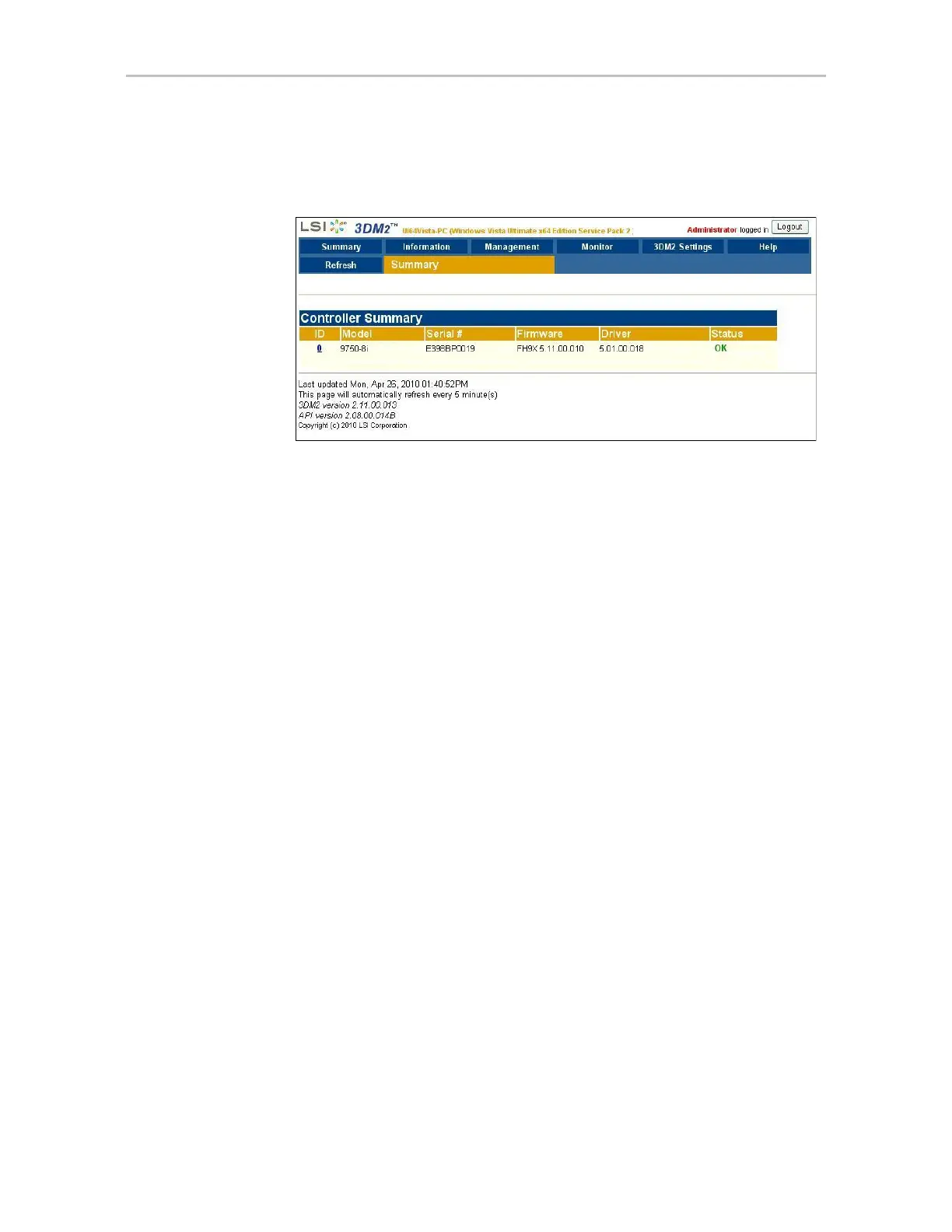

Figure 94. Controller Summary Page
The Summary page appears after you first logon to 3DM2, or when you click
the Summary link in the menu bar.
This page provides basic information about each 3ware RAID controller in
your system. To see details about the units in a controller, click the link in the
ID column.
ID. The ID that the operating system assigns to the controller.
Model. The model name of the controller. (The model number is also printed
on a sticker on the outside bracket of the controller.)
Serial #. The serial number of the controller. (The serial number is also
printed on a sticker on the outside bracket of the controller, or on the backside
of the controller.)
Firmware. The firmware version running on the controller.
Driver. The driver version being used to interact with the controller.
Status. The overall status of the controller. Possible statuses include OK,
Warning, Error, and No Units.
Warning indicates that a background task is
currently being performed (rebuilding, migrating, or initializing).
Error
indicates that a unit is degraded or inoperable. If both Error and Warning
conditions exist, the status will appear as Error. For more information, see
“Checking Unit and Drive Status through 3DM2” on page 133.
