LSI 3ware 9750 User Manual

Chapter 10. Enclosure Management
186 3ware SATA+SAS RAID Controller Card Software User Guide, Version 10.2

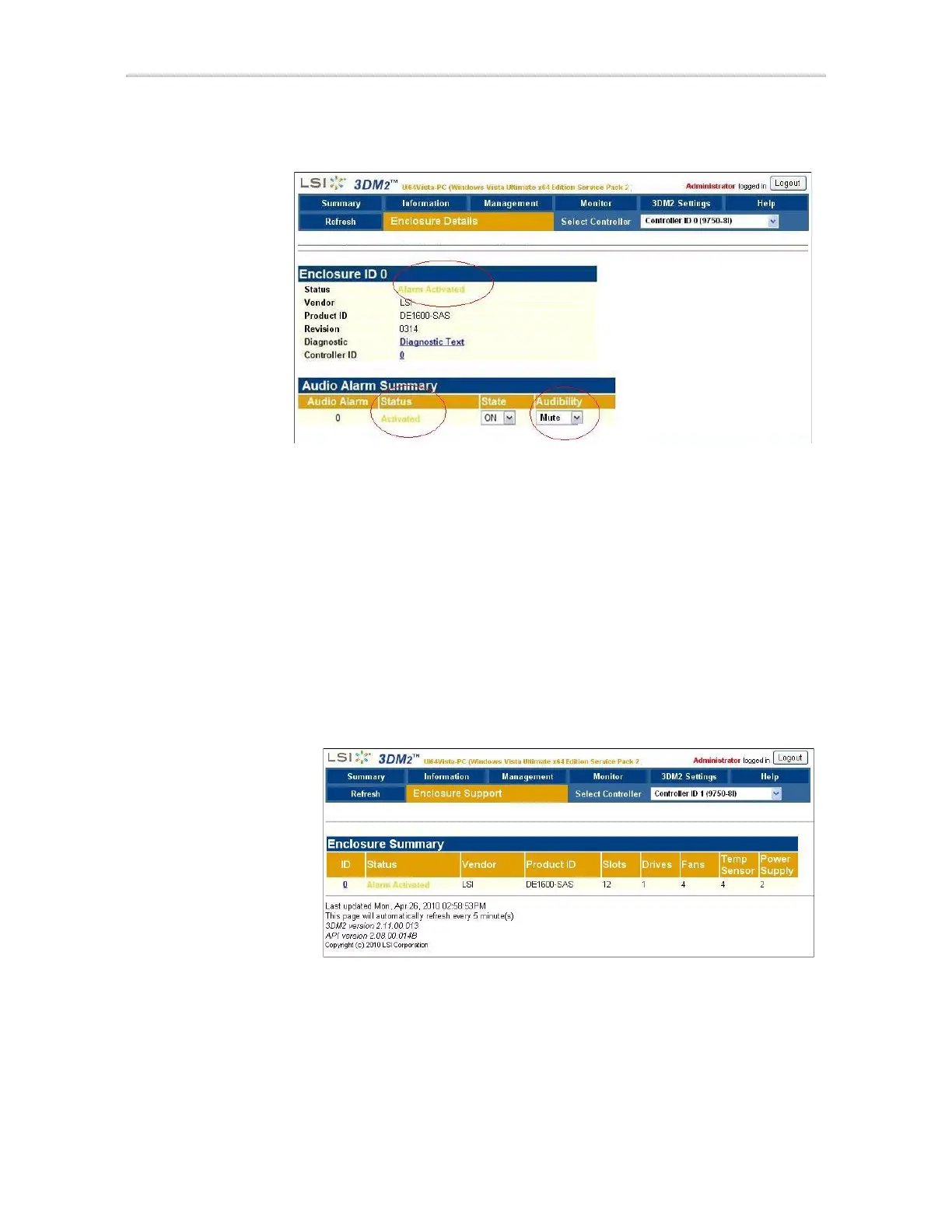

Figure 90. Alarm displays as “Activated” when muted
Controlling an Enclosure Alarm In 3DM2
In 3DM2, you can turn off an enclosure alarm that has activated, or you can
choose to mute or unmute it.
To mute, unmute, or turn off an enclosure alarm
1 Choose
Monitor >> Enclosure Support from the menu bar in 3DM2.
The Status column indicates
Alarm Activated when the alarm has turned
on, as shown in Figure 91.
Figure 91. Enclosure Summary shows Alarm Activated
2 On the Enclosure Summary page, click the blue Enclosure ID link for the
enclosure to go to the Enclosure Details page.
