214658 92 Revision A
1003605
A

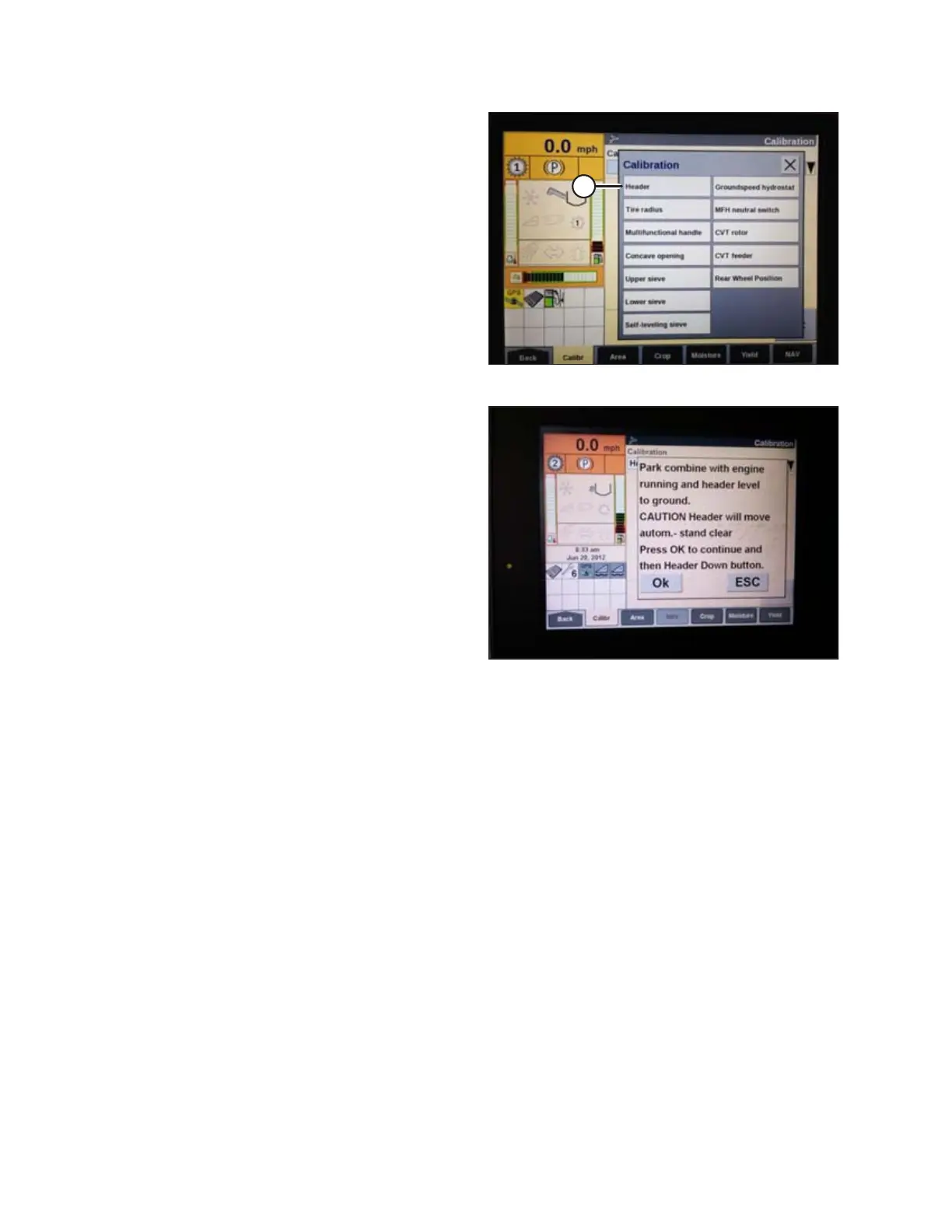

Figure 6.43: Case IH Combine Display
9. Select CALIBRATION on the combine display, and
press the right arrow navigation key to enter the
information box.
10. Select HEADER (A), and press ENTER. The
CALIBRATION dialog box opens.
NOTE:
You can use up and down navigation keys to move
between options.
10036061003606
Figure 6.44: Case IH Combine Display
11. Follow calibration steps in the order they appear in the
dialog box. As you proceed through the calibration
process, the display will automatically update to show
the next procedure step.
NOTE:
The calibration procedure will stop if the system sits idle
for more than 3 minutes, or if the ESC key is pressed
during any step.
NOTE:
Refer to your combine operator’s manual for an
explanation of any error codes encountered.
12. When all the steps have been completed, CALIBRATION SUCCESSFUL is displayed on the page. Exit the
CALIBRATION menu by pressing the ENTER or ESC key.
NOTE:
If float was set heavier to complete ground calibration procedure, adjust to recommended operating float after
calibration is complete.
13. If the unit does not function properly, conduct maximum stubble height calibration.
PREDELIVERY INSPECTION
