6.3 Checking Draper Belt Tension
Draper tension is factory-set but should be checked before operating.
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
NOTE:
Drapers may be sticky when new. To help reduce stickiness, apply talcum or baby powder to the drapers.
1. Raise the header fully and engage the combine safety props.
2. Stop engine and remove key from ignition.

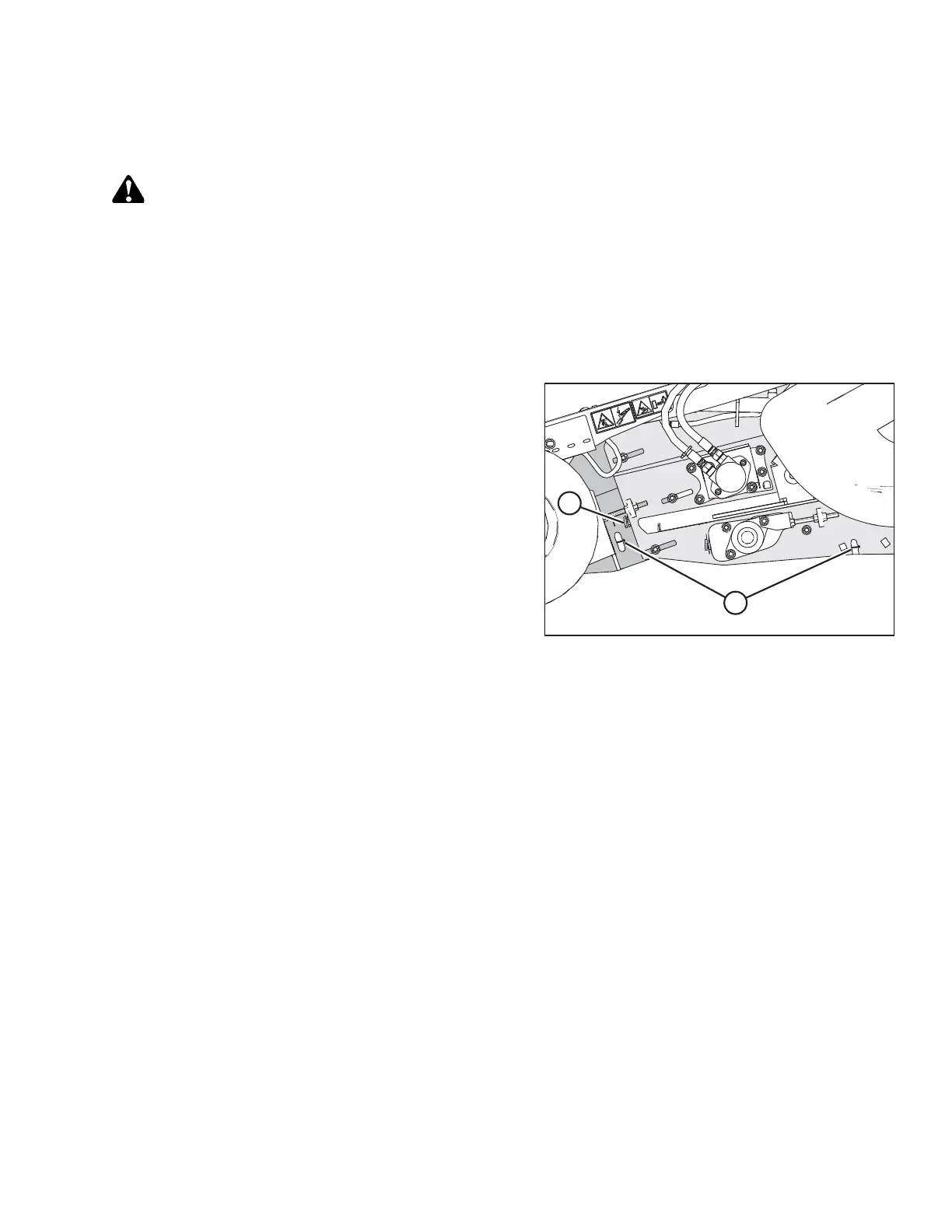

Figure 6.127: Draper Tension Indicator
3. Ensure drapers are visible through slots (A). Proper
tension is achieved when the draper aligns with
indicator notch in slots (A).
IMPORTANT:
For proper draper tracking, ensure deck indicator (B) is
in the same position on both sides of the header.
If adjustment is required, refer to 6.3.1 Adjusting Front
Draper Belt Tension, page 138 or 6.3.2 Adjusting Rear
Draper Belt Tension, page 140.
