214658 80 Revision A
1023383
A

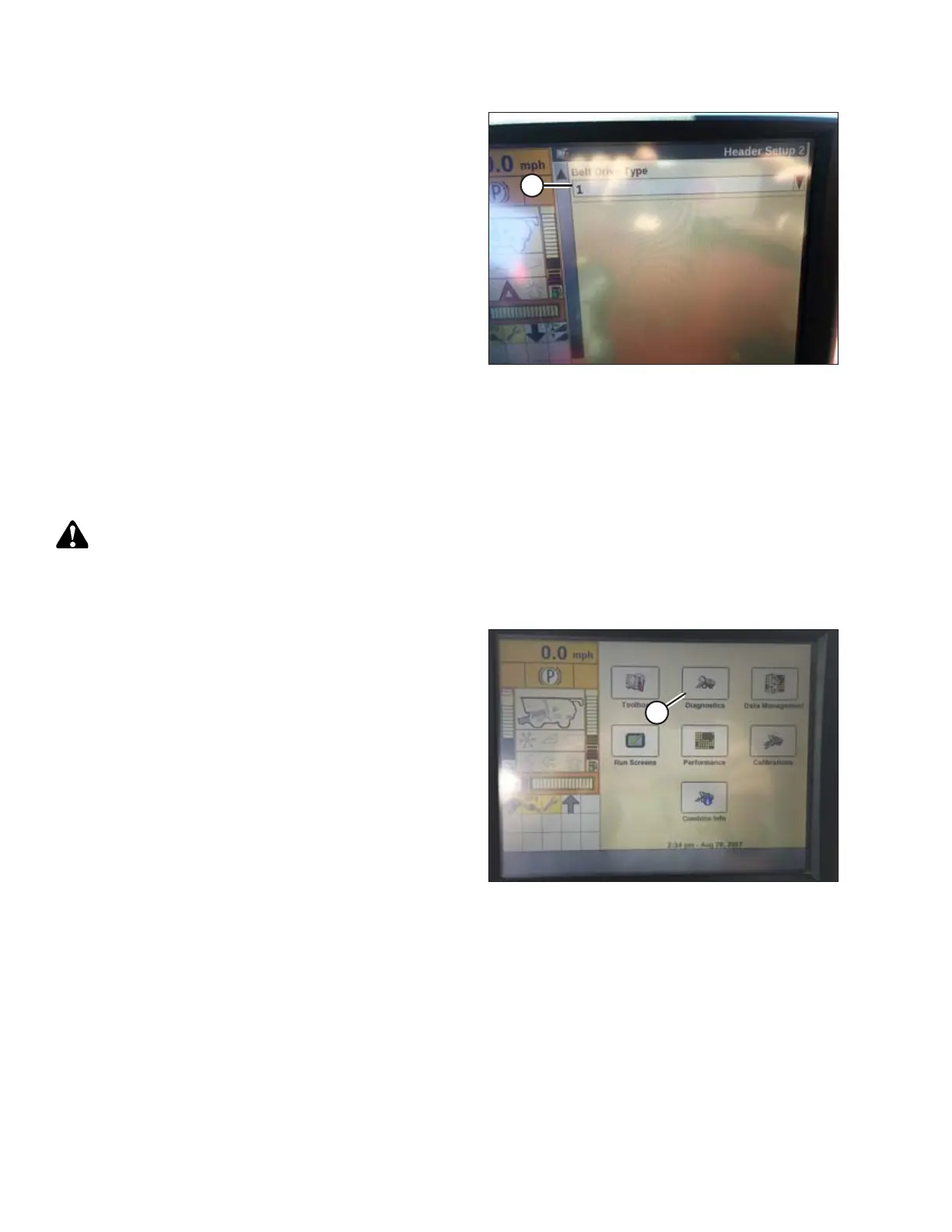

Figure 6.14: Case IH Combine Display
6. From the BELT DRIVE TYPE menu (A), select
• 1 - for most pick-up headers
• 2 - for 4.9 m (16 ft.) Rake-Up pick-up headers
• 3 - for SwathMaster pick-up headers
NOTE:
Proper belt drive selection optimizes auto-belt to
ground speed.
Checking Voltage Range from Combine Cab (Case IH 5130/6130/7130; 5140/6140/7140)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
CAUTION
Check to be sure all bystanders have cleared the area.
1. Raise header until header wheels are 150 mm (6 in.) above ground.
1023272
A
Figure 6.15: Case IH Combine Display
2. On the main page of the combine display, select
DIAGNOSTICS (A). The DIAGNOSTICS page opens.
PREDELIVERY INSPECTION
