MacDon PW8 - Configuring Headers for New Holland CX; Moving Stripper Assemblies

214658 41 Revision A
4.3 Configuring Headers for New Holland CX
PW8 Pick-Up Headers are configured at the factory for New Holland combine models with a 1270 mm (50 in.)
feeder house. These procedures describe how to modify the header for model CX with a 1524 mm (60 in.)
feeder house.
4.3.1 Moving Stripper Assemblies
To reposition the stripper assemblies for a larger header opening, follow these steps:
10117471011747
A
B

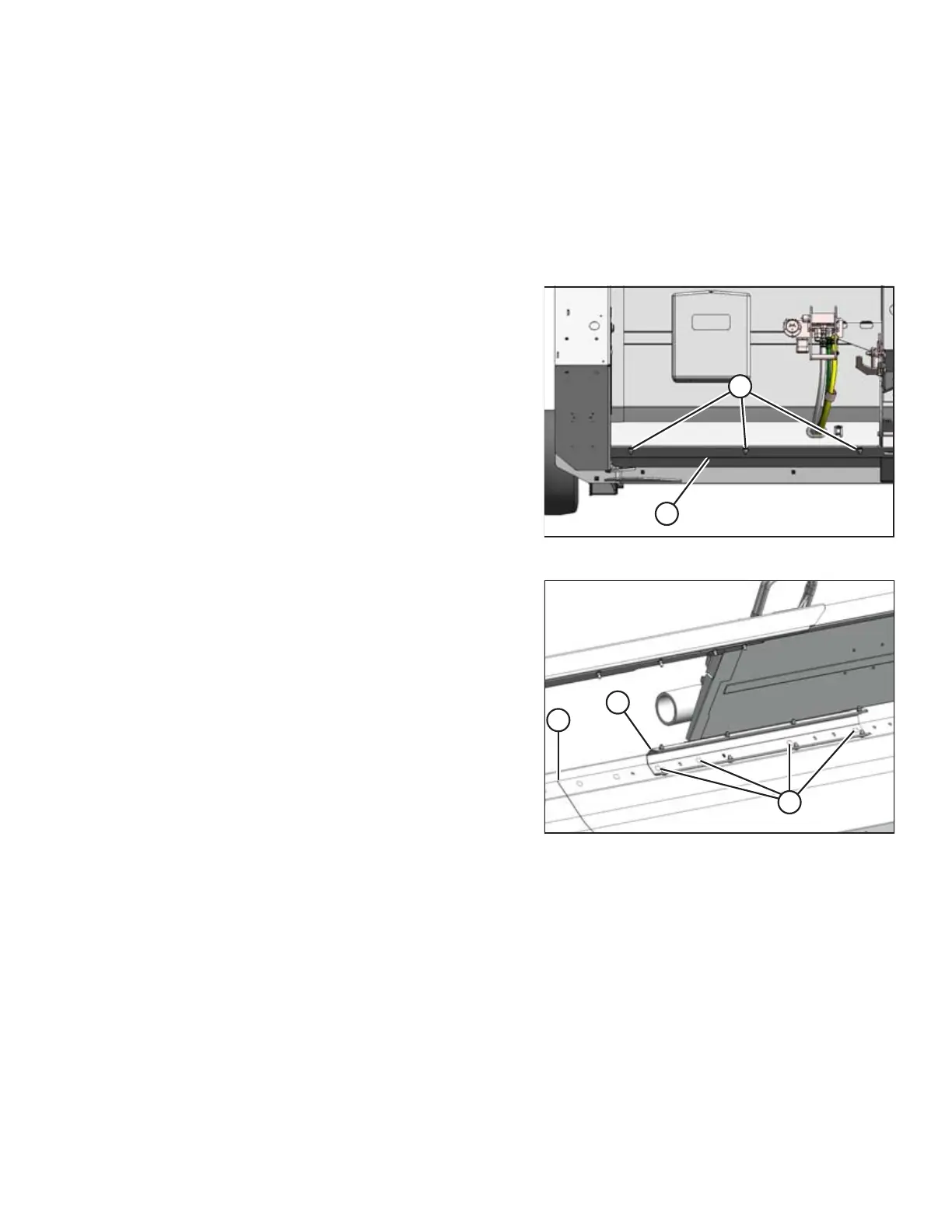

Figure 4.24: Left Cover – Right Side Opposite
1. Loosen three bolts (A) and remove cover (B) on both
sides of the header to expose the stripper assembly
attachment hardware.
1014240
B
C
A
Figure 4.25: Left Stripper – Narrow Opening
2. Remove the four bolts (A) attaching left stripper
assembly (B) to the frame, left of the header
centerline (C).
NOTE:
For clarity, auger not shown in Figure 4.25, page 41
NOTE:
The centerline is located where the header pans meet.
RECONFIGURING HEADERS
