3.5 Attaching Caster Wheels
Headers can be ordered with either fixed wheels or caster wheels. For instructions about attaching fixed wheels,
refer to 3.4 Attaching Fixed Wheels, page 22.
NOTE:
Headers are shipped with caster wheels removed.
1022319
B
A

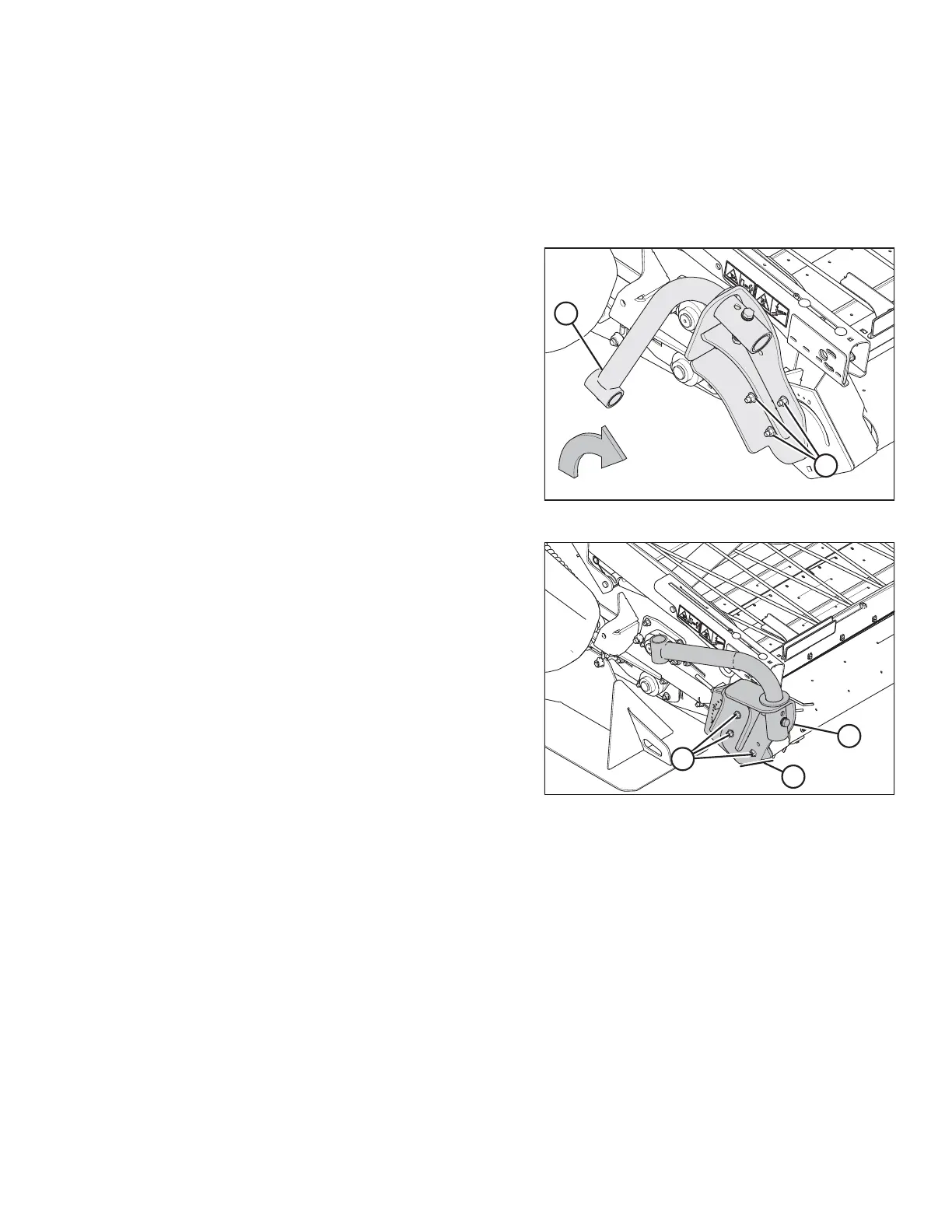

Figure 3.19: Header Wheel Right Side
2. Remove bolts (A).
3. Remove caster wheel support (B).
1022447
B
A
C
Figure 3.20: Header Wheel Right Side
4. Rotate caster wheel support (A) until it aligns with the
header frame at location (B).
5. Install bolts (C) and torque to 68.5 Nm (50.5 lbf·ft).
