MacDon PW8 - Attaching to John Deere 60, 70, S, or T Series Combine

214658 58 Revision A
5.2 Attaching to John Deere 60, 70, S, or T Series Combine
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1006651
A
B

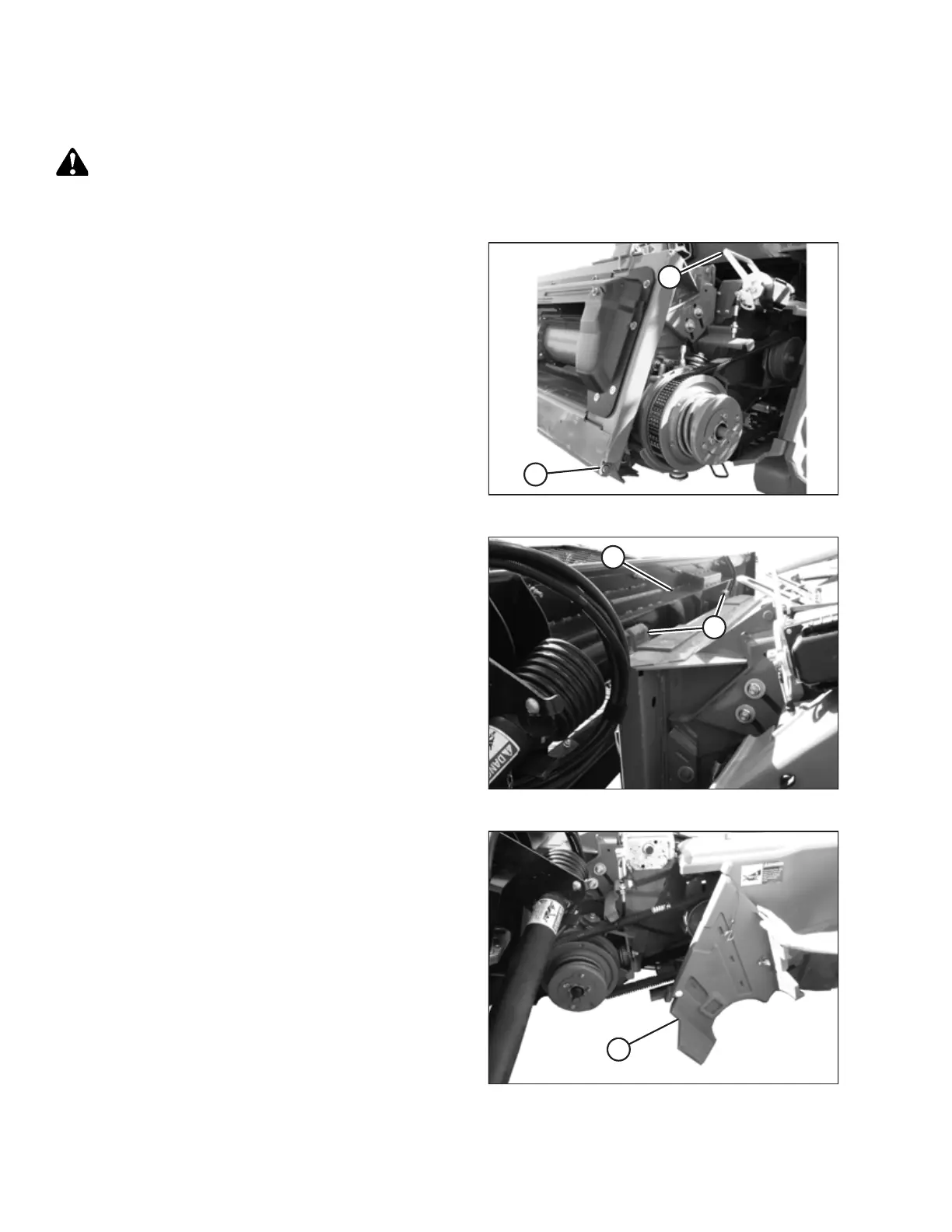

Figure 5.8: Feeder House Locks
1. Push handle (A) on combine coupler toward feeder
house to retract pins (B) at bottom corners of
feeder house.
1006652
A
B
Figure 5.9: Header on Combine
2. Drive combine slowly up to header until feeder house
saddles (A) are directly under header top beam (B).
3. Raise feeder house to lift header ensuring feeder house
saddles (A) are properly engaged in the header frame.
4. Position header slightly off the ground, stop engine, and
remove key from ignition.
1006752
A
Figure 5.10: Combine Driveshield
5. Open driveshield (A) on combine feeder house.
ATTACHING HEADER TO COMBINE
