MacDon PW8 - Chapter 5: Attaching Header to Combine; Attaching to Case IH Combine

214658 55 Revision A

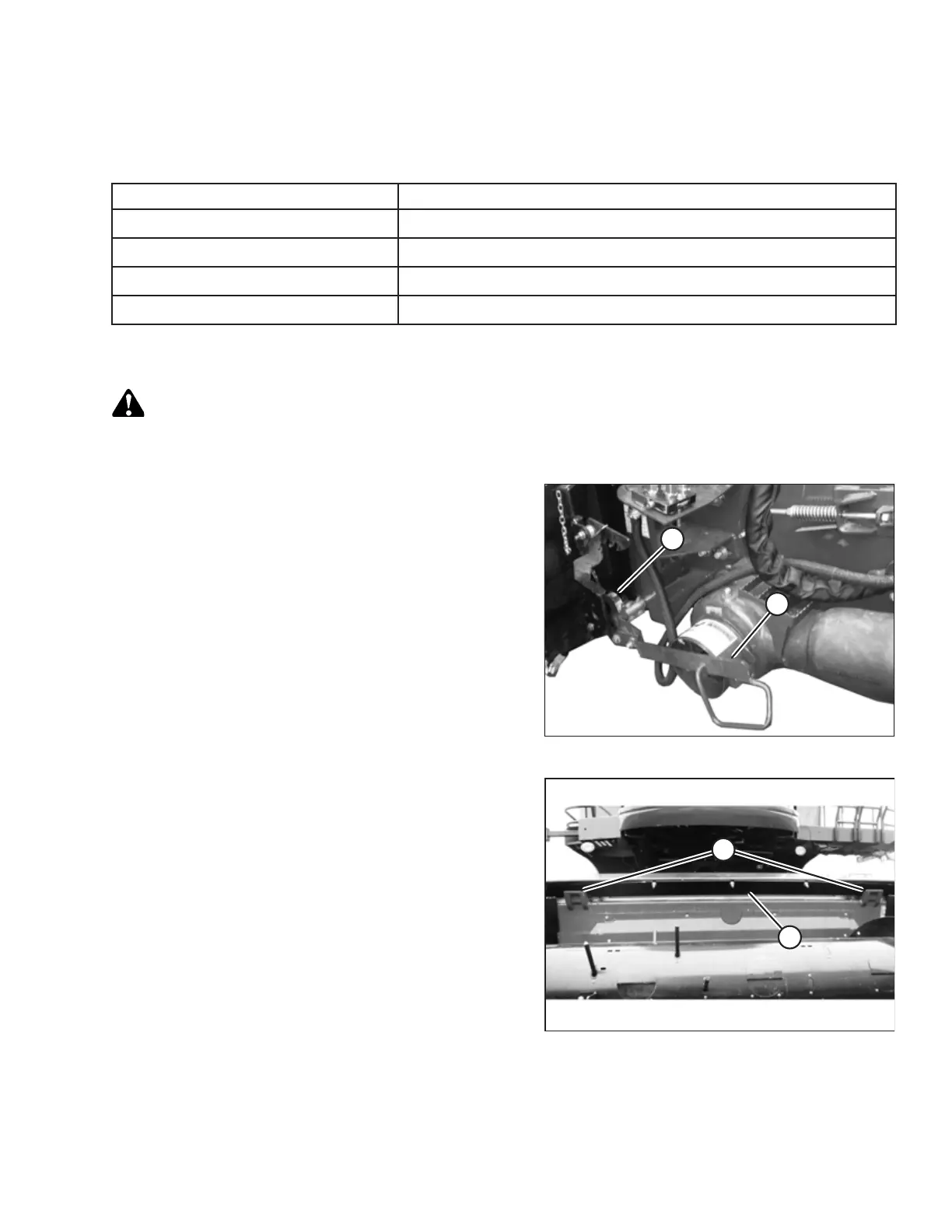

5 Attaching Header to Combine
This section includes instructions for attaching PW8 headers to the combines listed below.
Combine Refer to
Case IH 5.1 Attaching to Case IH Combine, page 55
John Deere
5.2 Attaching to John Deere 60, 70, S, or T Series Combine, page 58
New Holland CR, CX Series 5.3 Attaching to New Holland CR/CX Series Combine, page 62
Versatile
5.4 Attaching to Versatile Combine, page 66
5.1 Attaching to Case IH Combine
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1006641
A
B
Figure 5.1: Feeder House Locks
1. Pull handle (A) on combine to raise hooks (B) on both
sides of the feeder house.
1006642
B
A
Figure 5.2: Header on Combine
2. Drive combine slowly up to header until feeder house
saddle (A) is directly under the header top beam (B).
3. Raise feeder house slightly to lift header ensuring
feeder house saddle (A) is properly engaged in
header frame.
4. Stop engine, and remove key from ignition.
