214658 56 Revision A

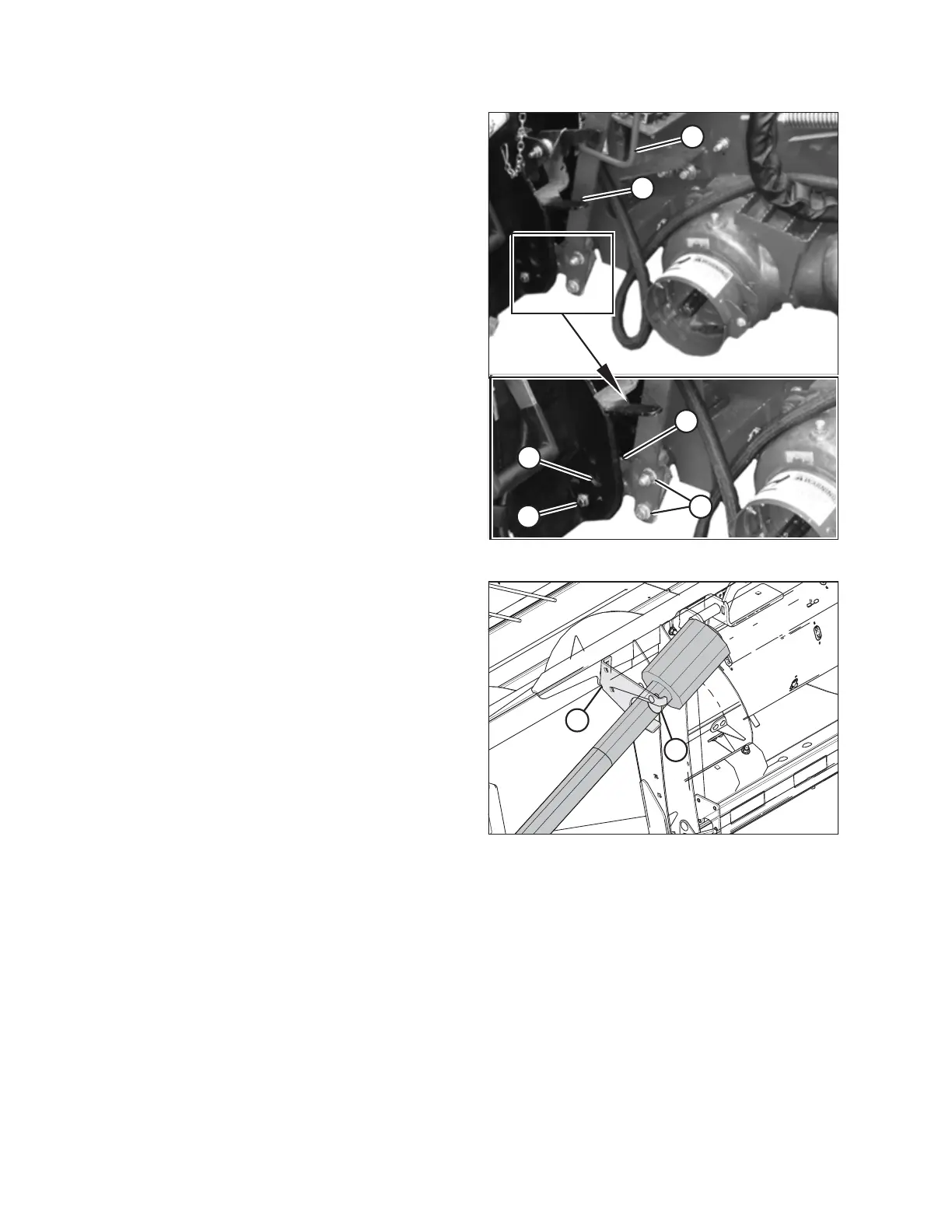

Figure 5.3: Engaging Locks
5. Lift lever (A) on header at left side of feeder house and
push handle (B) on combine to engage locks (C) on
both sides of the feeder house.
6. Push down on lever (A) so that slot in lever engages
handle (B) to lock handle in place.
7. If locks (C) do not fully engage the spacer tube and bolt
on the header, loosen nut (E) and adjust position of the
spacer tube and bolt (D) as necessary (both sides).
Tighten nut.
8. Loosen bolts (F) and adjust lock as required to obtain
full lock on spacer tube and bolt (D) when lift lever (A)
and handle (B) are engaged. Retighten bolts.
Figure 5.4: Driveline in Storage Position
9. Rotate disc (B) on header driveline storage hook (A)
and remove driveline from hook.
ATTACHING HEADER TO COMBINE
