214658 145 Revision A
6.6 Installing Endshield Decals
Red and yellow stripe decals for the right and left header endshields are provided in the manual case. Select the
stripe decals matching your combine color and follow the installation instructions.

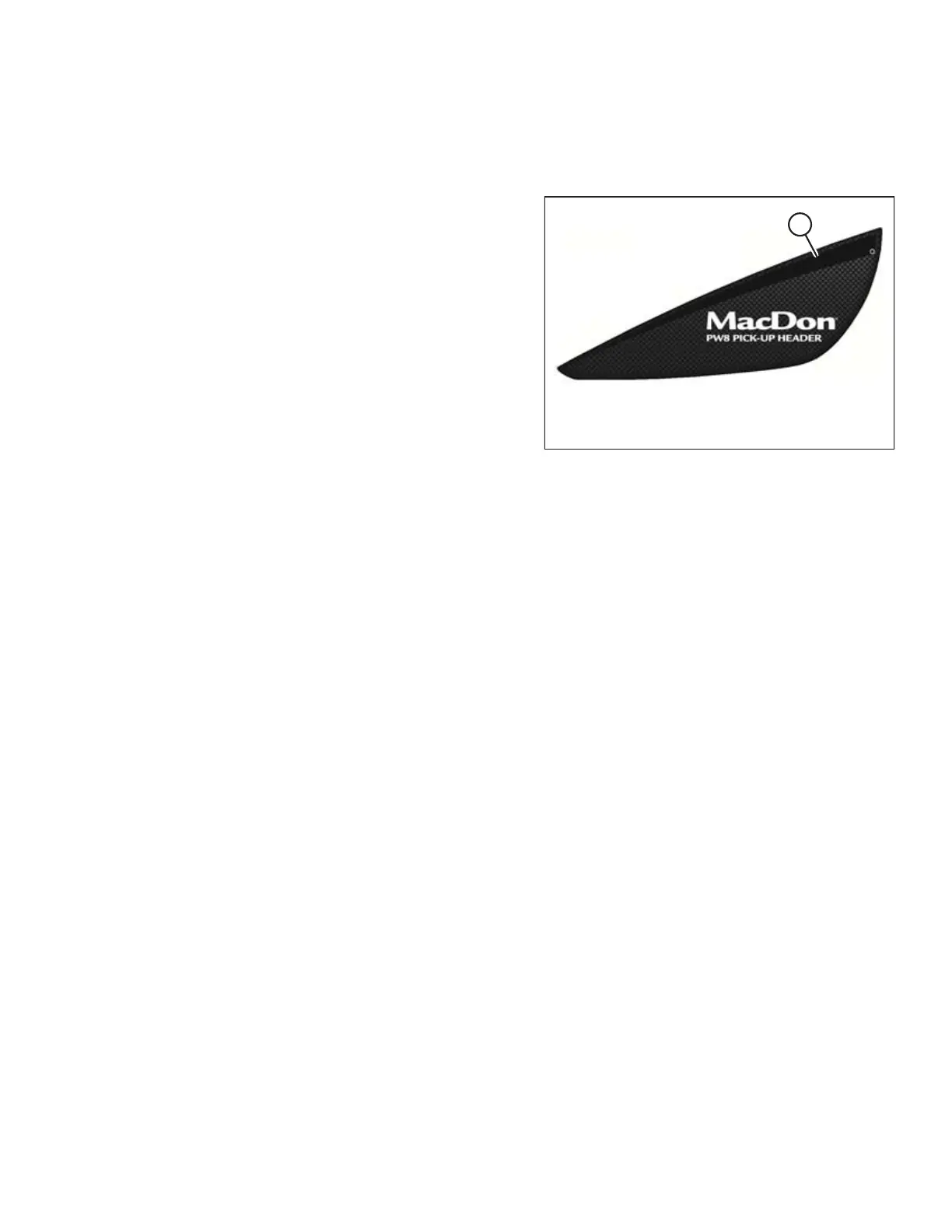

Figure 6.140: Left Endshield – Right Opposite
1. Clean and dry the installation area outlined by the black
shadow (A) on left endshield.
2. Ensure the decal is placed on top of the black
shadow (A). Remove the smaller portion of the split
backing paper.
3. Place the decal in position and slowly peel back the
remaining paper, smoothing the decal as it is applied.
4. Prick small air pockets with a pin and smooth out.
5. Repeat procedure on right endshield.
PREDELIVERY INSPECTION
