Calibrating Auto Header Height Control (New Holland CR Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
CAUTION
Check to be sure all bystanders have cleared the area.
Check the following conditions before starting the header calibration procedure:
• The header is attached to the combine.
• The combine is on level ground, with the header level to the ground.
• The engine is running.
• The combine is NOT moving.
• No faults have been received from Header Height Controller (HHC) module.
• Header/feeder is disengaged.
• Lateral float buttons are NOT pressed.
• ESC key is NOT pressed.
To calibrate the AHHC, follow these steps:
1016108
A

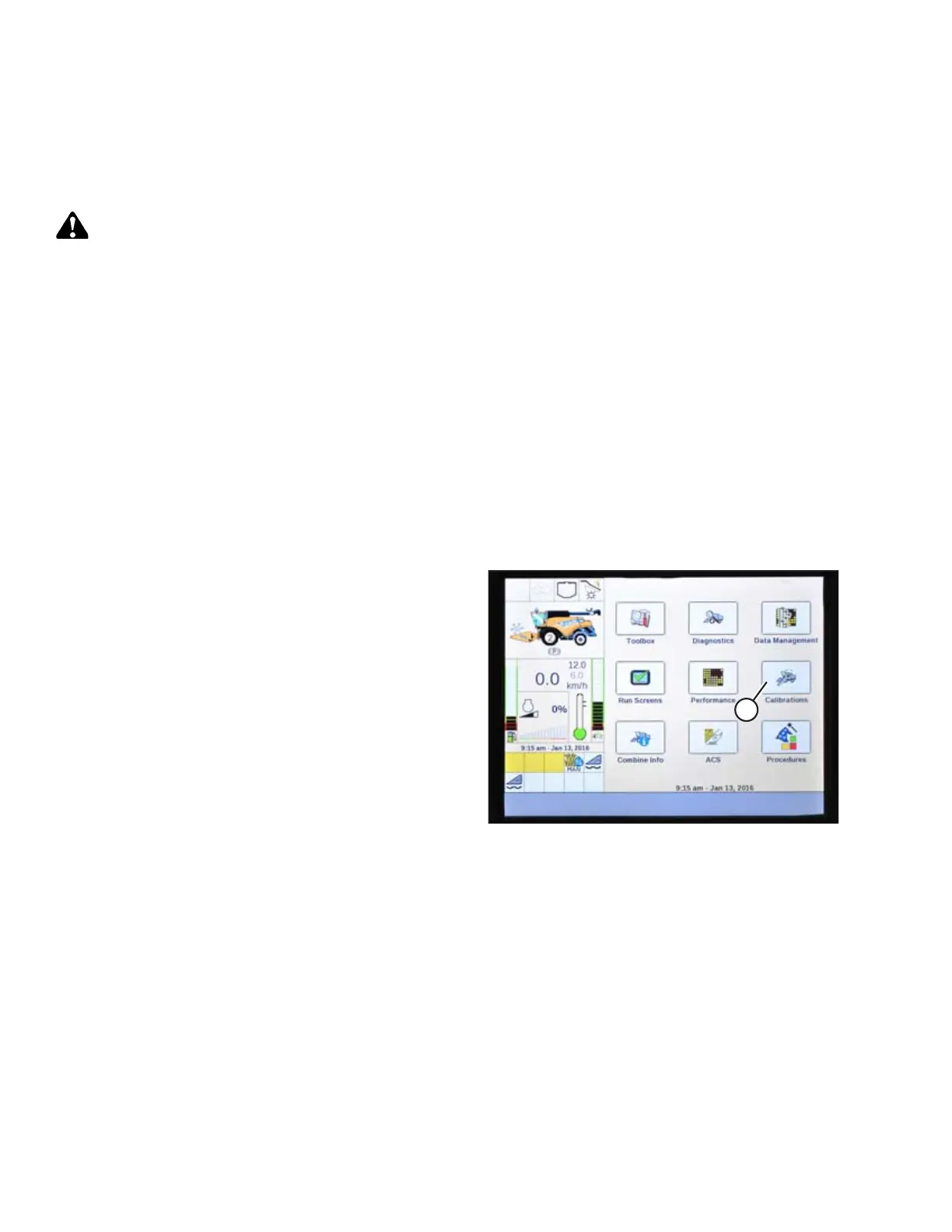

Figure 6.116: New Holland Combine Display
1. Select CALIBRATIONS (A) on the main page. The
CALIBRATION page displays.
PREDELIVERY INSPECTION
