Checking Voltage Range from Combine Cab (Case IH 7010/8010; 7120/8120/9120;
7230/8230/9230; 7240/8240/9240)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
CAUTION
Check to be sure all bystanders have cleared the area.
1. Raise header until header wheels are 150 mm (6 in.) above ground.

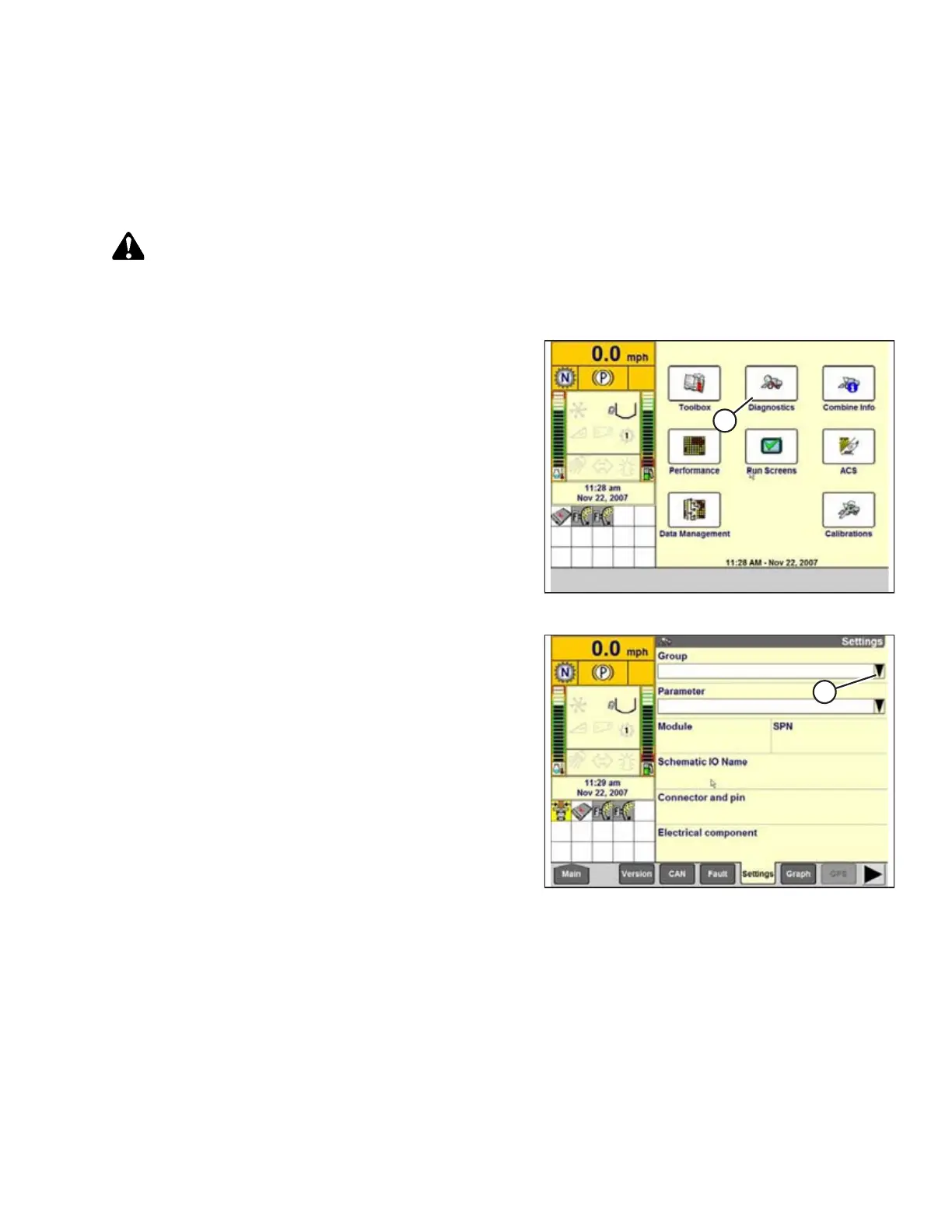

Figure 6.31: Case IH Combine Display
2. Select DIAGNOSTICS (A) on the MAIN page. The
DIAGNOSTICS page opens.
3. Select SETTINGS. The SETTINGS page opens.
Figure 6.32: Case IH Combine Display
4. Select GROUP drop-down arrow (A). The GROUP
dialog box displays.
